Application:

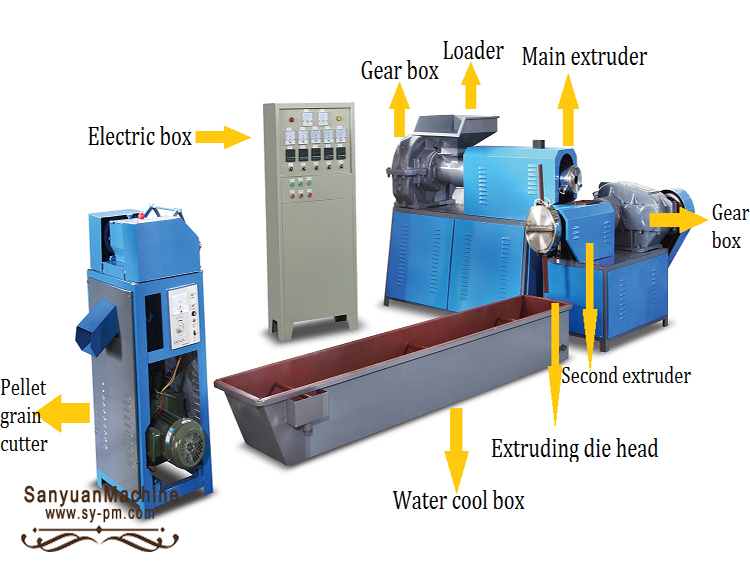

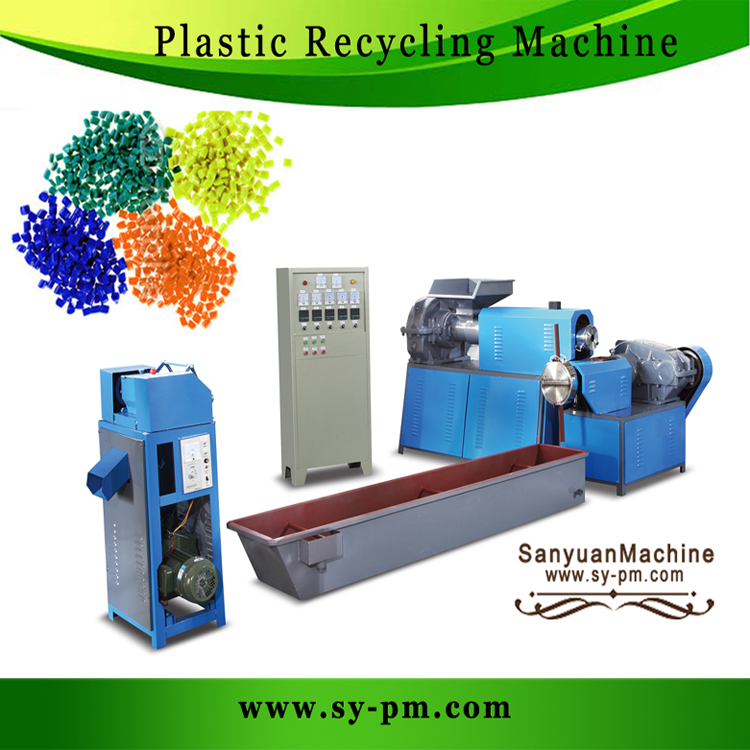

SJ-120 Double-stage Waste Plastic Regenerative Pelletizer
is equipped with two units of extruders, which is advantaged to moisture
evaporation, and with even and smooth regenerative plastic granules. It is also

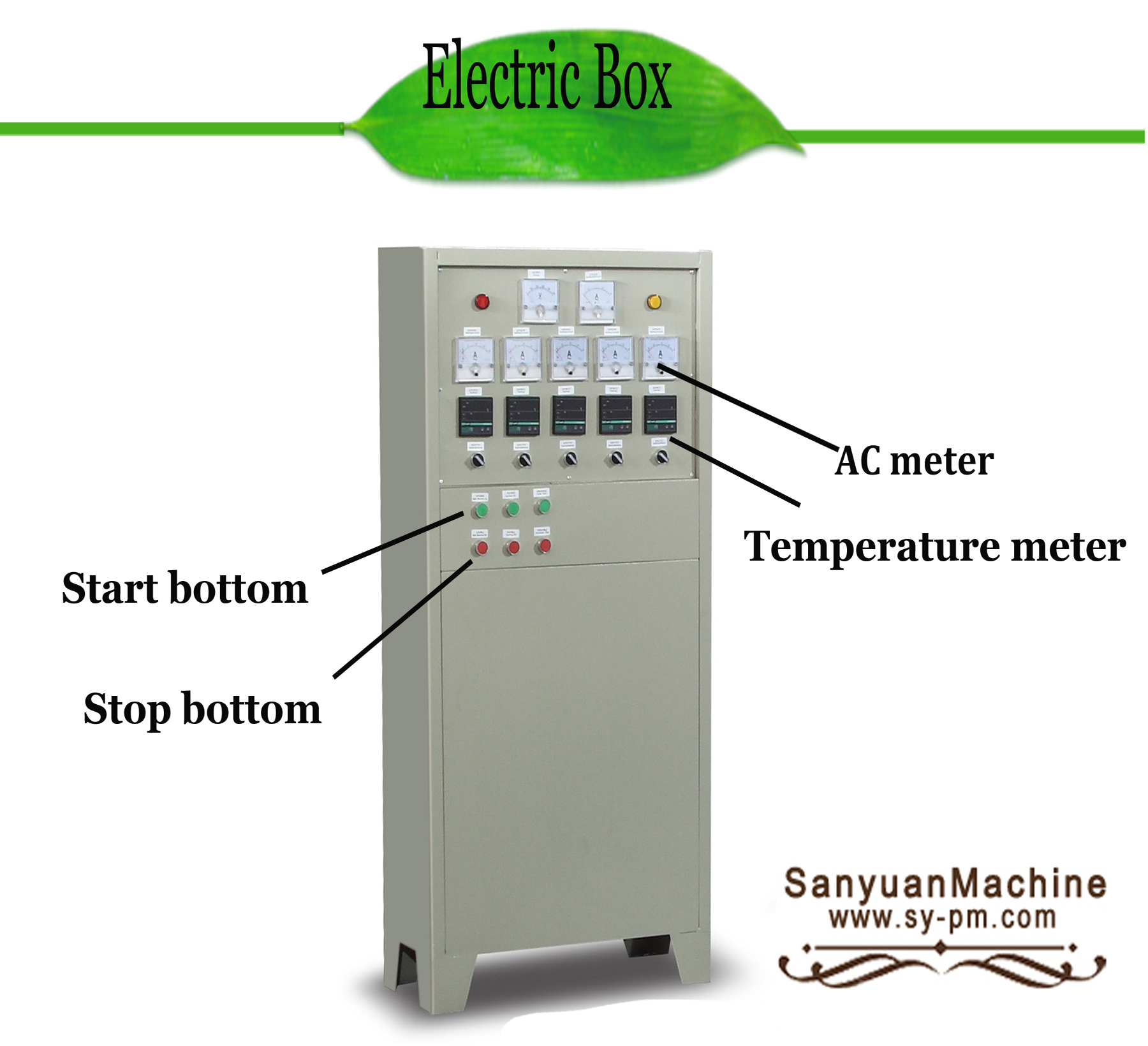

equipped with automatic temperature control system, which is suitable for HDPE.
LDPE waste plastic regenerative palletizing.
Main specification:
Output: 70-100kg/h
Auxiliary extruder
Main Technical Parameters:
|
Machine Model |
SJ-100 |
SJ-120 |
SJ-130 |
|
|
Production |
LDPE |
60-70kg/h |
100kg/h |
105kg/h |
|
HDPE |
40-50 kg/h |
70 kg/h |
75 kg/h |
|
|
PP |
60-70 kg/h |
100
kg/h |
105 kg/h |
|
|

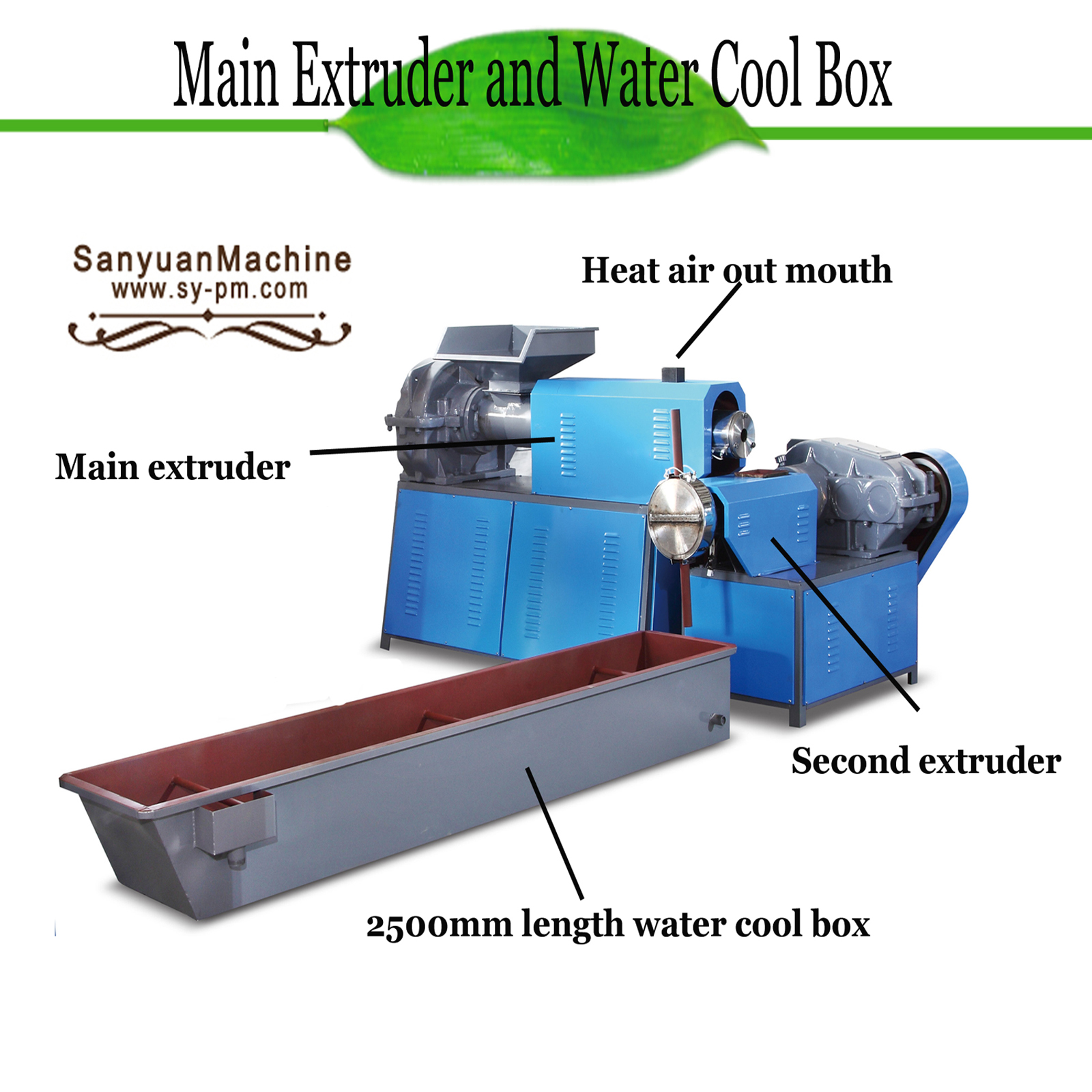

Main Extruder
Screw Size |
97mm |
97mm |
117mm |
|
|
Second Extruder
Screw Size |
97mm |
97mm |
105mm |
|
|
Hydraulic Screen
Changer |
Optional |
Optional |
Optional |
|
|
Force Feeder |
Optional |
Optional |
Optional |
|
|
Main Motor Size |
15kw |
15kw |
18.5kw |
|
|
Second Motor Size |
7.5kw |
7.5kw |
7.5kw |
|
|
Heating Power |
15kw |
15kw |
20kw |
|
|
Main Extruder LD |
12:1 |
12:1 |
12:1 |
|
|
Second Extruder LD
|
7:1 |
7:1 |
7:1 |
|
|
Main Motor
Inverter |
Optional |
Optional |
Optional |
|
|
Second Motor
Inverter |
Optional |
Optional |
Optional |
|
|

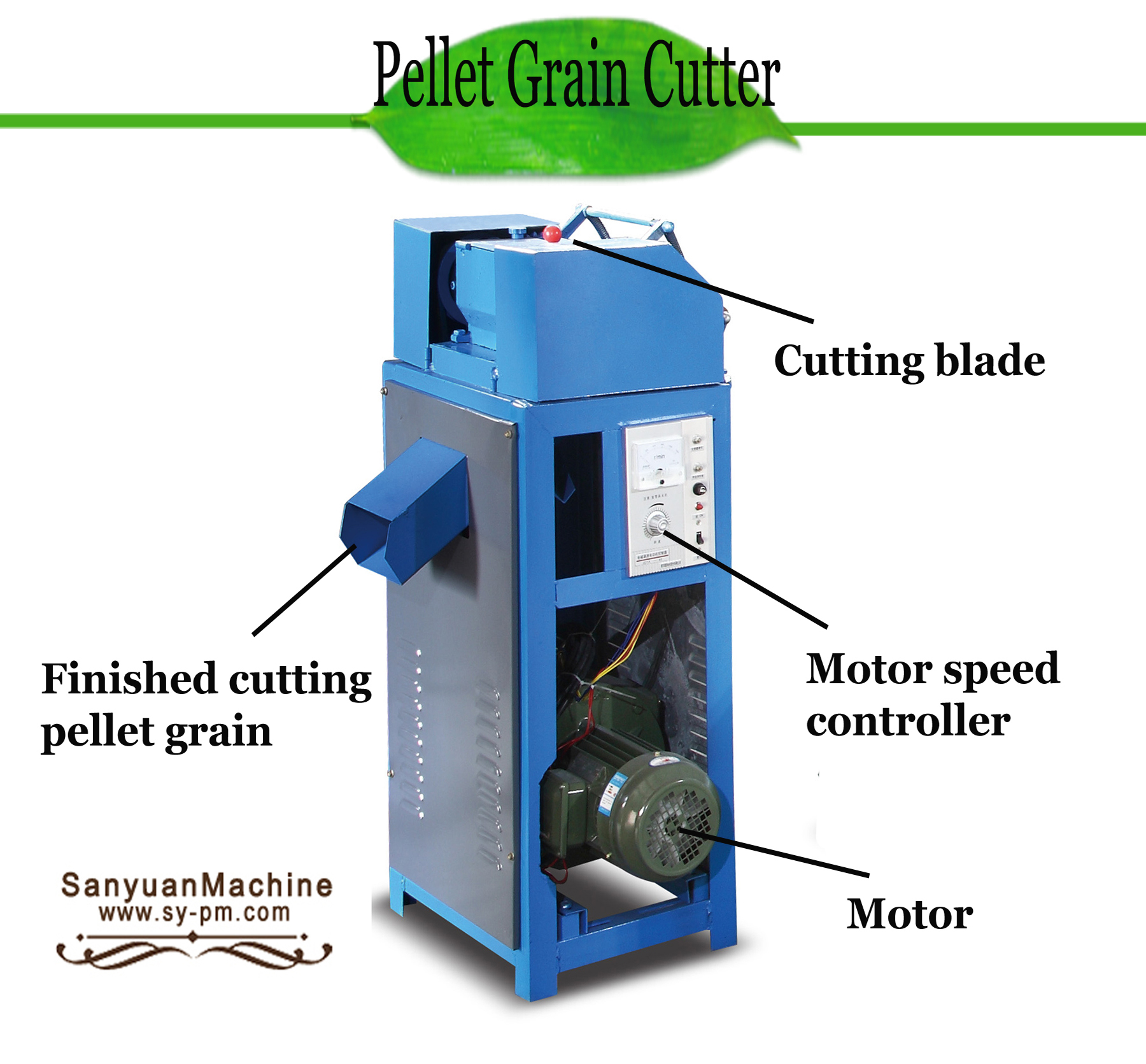

Cutter Motor |
1.5kw |
1.5kw |
1.5kw |
|
|
Force Feeder Motor |
Optional |
Optional |
Optional |
|
|
Main Extruder Gear
Box Hard Teeth |
350 Model |
350
Model |
400 Model |
|
|
Second Extruder
Gear Box Hard Teeth |
350+bearing seat |
350+bearing
seat |
350+bearing seat |
|
|
Ceramic Heating
Ring |
4pcs |
4pcs |
6pcs |
|
|
Aluminum Heating
Ring |
6pcs |
6pcs |
6pcs |
|
|
Machine Production
Dimension |
5000*2500*1600 mm |
5000*2500*1600 mm |
5000*2600*1600 mm | |
Free Spare
Parts:
|
No. |
Spare parts name |
Quantity |
|
1 |
Temperature meter |
1set |
|
2 |
Electric Sensor |
2 pc |
|
3 |
Heating ring |
3 pc |
|
4 |
Tool box |
1set |
|
5 |
English manual |
1pc |
