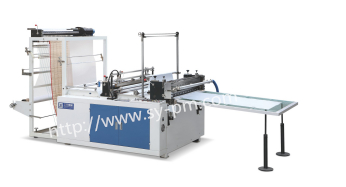

Descriptions1. This
machine is suitable for sealing and cutting the plastic film as high density
polyethylene(HDPE), low density polyethylene(LDPE). It can be used for
automatically sealing and cutting various plastic films with colors printing or
without colors printing to be bags continuously. It is best equipment for making
plastic vest bag s and flat bags2. This machine is controlled by microcomputer system, stepless regulated by
stepmotor, featured by high-position stop, stable feeding and accurate positioning
etc. The finished bags are neat, stiff and smooth, with beautiful appearance
Fully automated computer control, high precision, good efficiency, one year warranty, more than 15 years experience, the master provides technical support abroad
Main Technical Parameters: | |||
Model | FQC-600 | FQC-700 | FQC-800 |
Sealing and cutting Width | 10-550mm | 10-650mm | 10-750mm |
Sealing and cutting Length | 100-1200mm | 100-1500mm | 100-1600mm |
Sealing and cutting Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Bag-Making Sped | 30-120pcs/min | 30-120pcs/min | 30-120pcs/min |
Error in Length | ±1mm | ±1mm | ±1mm |
Motor Power | 1.1kw | 1.5kw | 1.5kw |
Machine weight | 600kg | 700kg | 750kg |
Overall Dimensions(L×W×H) | 2800×1180×1600mm | 2800×1280×1650mm | 2800×1380×1700mm |
