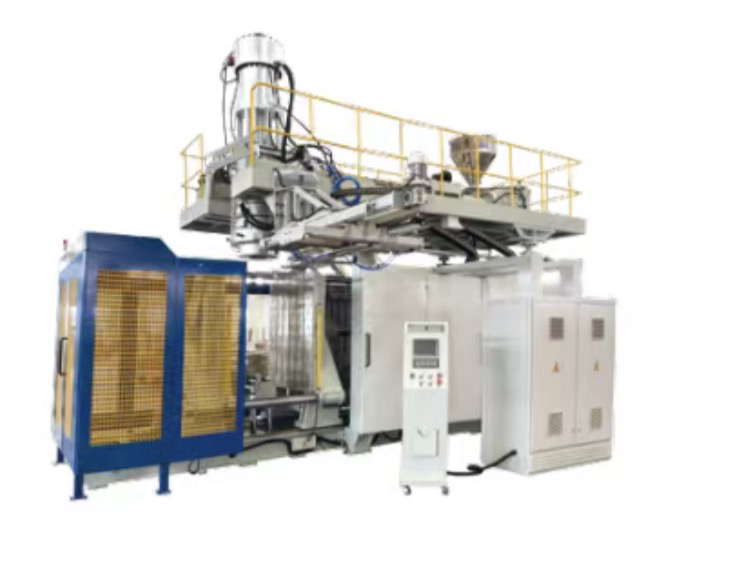

(3)Technical Parameters of SJ-160
|
Items |
Units |
SJ series |
|
Model |
|
SJ-160 |
|
Specification |
|
|
|
Station |
|
Single |
|
Max. Product volume |
L |
160 |
|
Dry cycle |
pc/h |
120 |
|
Output of HDPE / PP |
kg/h |
220 |
|
Weight of machine |
kg |
26000 |
|
Size of machine |
m，L×W×H |
6.8*4.6*4.7 |
|
Die Head |
|
|
|
Max. Die diameter(single-head) |
mm |
450 |
|
Capacity of accumulator head |
L |
18 |
|
Die Head Heating Zone(single-head) |
|
6 |
|
Die Head Heating(single-head) |
KW |
40 |
|
Clamping Unit |
|
|
|
Platen Distance |
mm |
600~1400 |
|
Clamping force |
KN |
820 |
|
Extruder Unit |
|
|
|
Screw Diametre |
mm |
75MM, 90MM, 75MM |
|
Screw Length/Diametre Ratio |
|
30:1 |
|
Screw heating power |
KW |
26 |
|
No.of heating zone(Screw) |
|
5 |
|
Power Unit |
|
|
|
Hydraulic Pump Driving Power |
KW |
31.5+4 |
|
Screw Motor Power |
KW |
45KW; 75KW; 45KW |
|
Total Power |
KW |
309KW |
|
Remarks |
|
|
|
Air consumption |
m3/min |
1.6 |
|
Blow pressure |
Mpa |
0.6 |
|
Cooling water pressure |
Mpa |
0.3 |
|
Water consumption |
L/min |
180 |
|
Max.Size of Mold |
mm,W×H |
1020×1250 |
(2)Main Parts List
|
Item Name |
Brand |
|
|
Hydraulic Parts |
||
|
Oil Pump |
SUMITOMO |
|
|
Hydraulic Valve |
YUKEN |
|
|
Proportional Valve |
YUKEN |
|
|
Solenoid Valve |
YUKEN |
|
|
Pneumatic Parts |
||
|
Solenoid Valve |
FESTO |
|
|
Cylinder |
FESTO |
|
|
Electrical Parts |
||
|
Microcomputer Control System |
MITSUBISHI |
|
|
|
|
|
|
Touch Screen |
INOVANCE |
|
|
Temperature Controller |
MITSUBISHI |
|
|
Contactor |
SCHNEIDER |
|
|
Air Switch |
SCHNEIDER |
|
