Brief Introduction:
This machine can produce rolling bag and also make vegetable bag and disposable table cover roll. Fully automatic exchange system can reduce the labor force, in the excellent servo motor driven system, it is the best choice for producing printed bag and blank bag . Easy for operate.
Features:
1. Use 1 pc servo motor driving, improve the speed and stability.
2. Heat seal and cold cut
design ensures the quality of the bag
3. Perforation line always keeps a same distance from the sealing line to ensure there won’t be any tensile force whenever in changing of difference length.

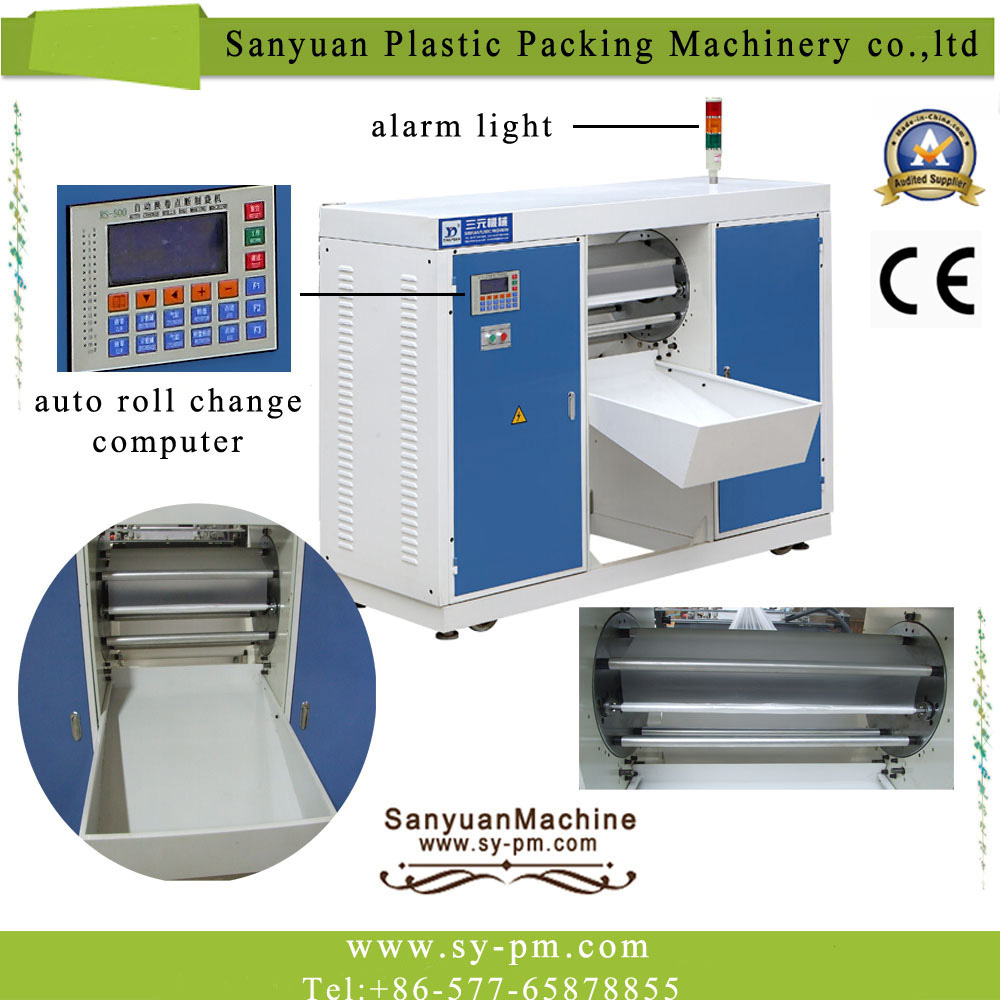

4. Auto exchange new rolling.
5. Both printed bags and blank bags can be made by this machine.
Main Technical parameters:
|
Model |
FQCD500 |
|
Sealing and cutting width |
450-500mm |
|
Sealing and cutting length |
300-1500mm |
|
Cutting speed |
30-120 cut/min |
|
Single layer film thickness |
0.08mm-0.15mm |
|
Error in length |
1mm |
|
Motor power AC motor |
1.1kw |
|
Frequency inverter |
1.5kw |
|
Conveyor auxiliary fan AC motor |
550w |
|
Take-up AC motor |
370w |
|
Winding AC motor |
370w |
|
Step motor |
37N/M |
|
Feed DC motor |
300w |
|
Heat power |
1.4kw |
|
Total power |
3.5kw |
|
Machine weight |
1400kg |
|
Overall dimension(L*W*H) |
5000*2100*1700mm |
Free Spare Parts:
|
No. |
Spare parts name |
Quantity |
|
1 |
Front sending spring |
50pcs |
|
2 |
High temperature cloth |
1 box |
|
3 |
wrench for Allen screws |
1set |
|
4 |
17-19 Offset ring spanner |
1pc |
|
5 |
8-10 spanner |
1pc |
|
6 |
Electric pen |
1 pc |
|
7 |
Oil stone |
1pc |
|
8 |
Oil gun |
1 pc |
|
9 |
20w electric iron |
4 pcs |
|
10 |
Synchronic belt |
1pc |
|
11 |
chick |
4pcs |
|
12 |
Book end |
8 pcs |
|
13 |
English manual |
1 pc |
Main Part Origin:
|
SPARE PART NAME |
BRAND NAME |
ORIGIN |
CERTIFICATE |
|
1. Close switch |
FOTEK |
TAIWAN |
CE certificate |
|
2.Servo motor |
Yaskawa |
JAPAN |
CE certificate |
|
3. Temperature meter |
OMRON |
JAPAN |
CE certificate |
|
4. Inverter |
DELTA |
TAIWAN |
CE certificate |
|
5. Button |
Pingchuan |
Wenzhou ,china |
CE certificate |
|
6. Breaker |
CHINT |
Wenzhou ,china |
CE certificate |
|
7. Contactor |
CHINT |
Wenzhou ,china |
CE certificate |
|
8. Ammeter |
CHINT |
Wenzhou ,china |
CE certificate |
|
9. Voltage meter |
CHINT |
Wenzhou, china |
|
|
10. solenoid valve |
Air brand |
TAIWAN |
|
|
|
|
|
|

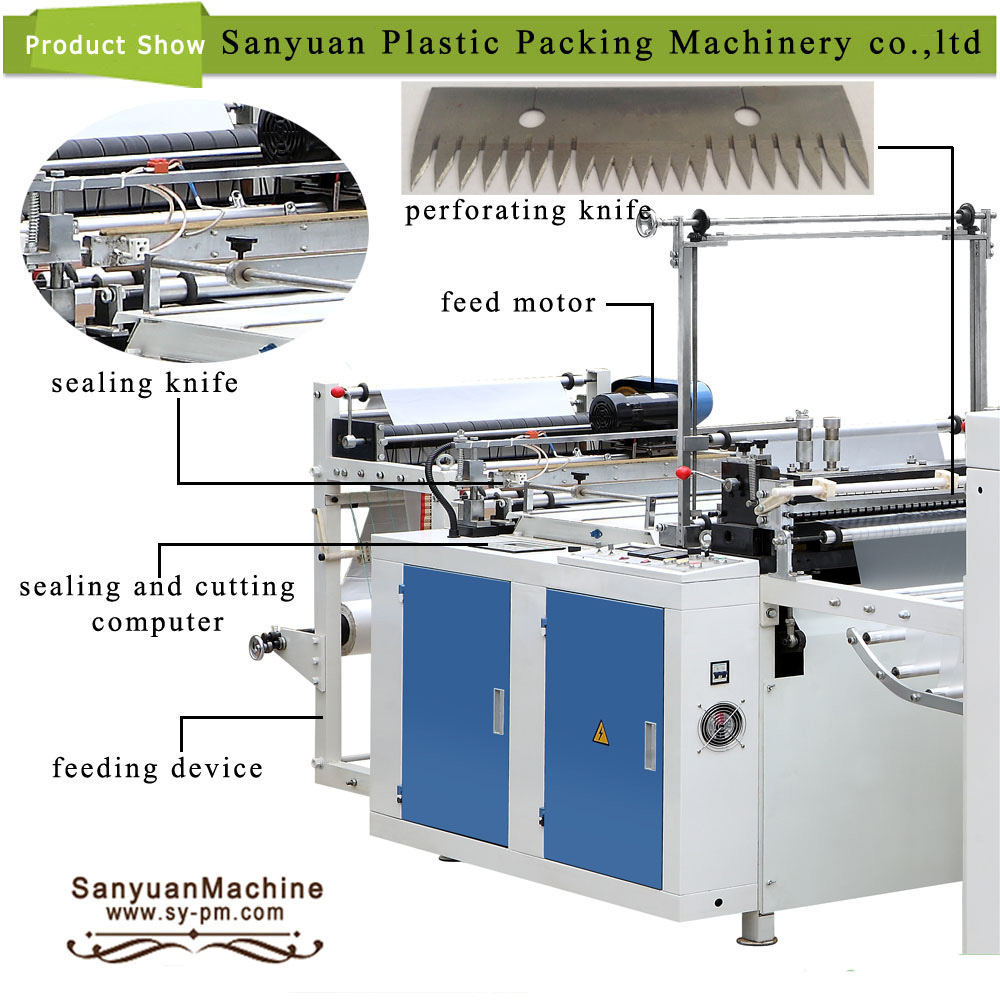

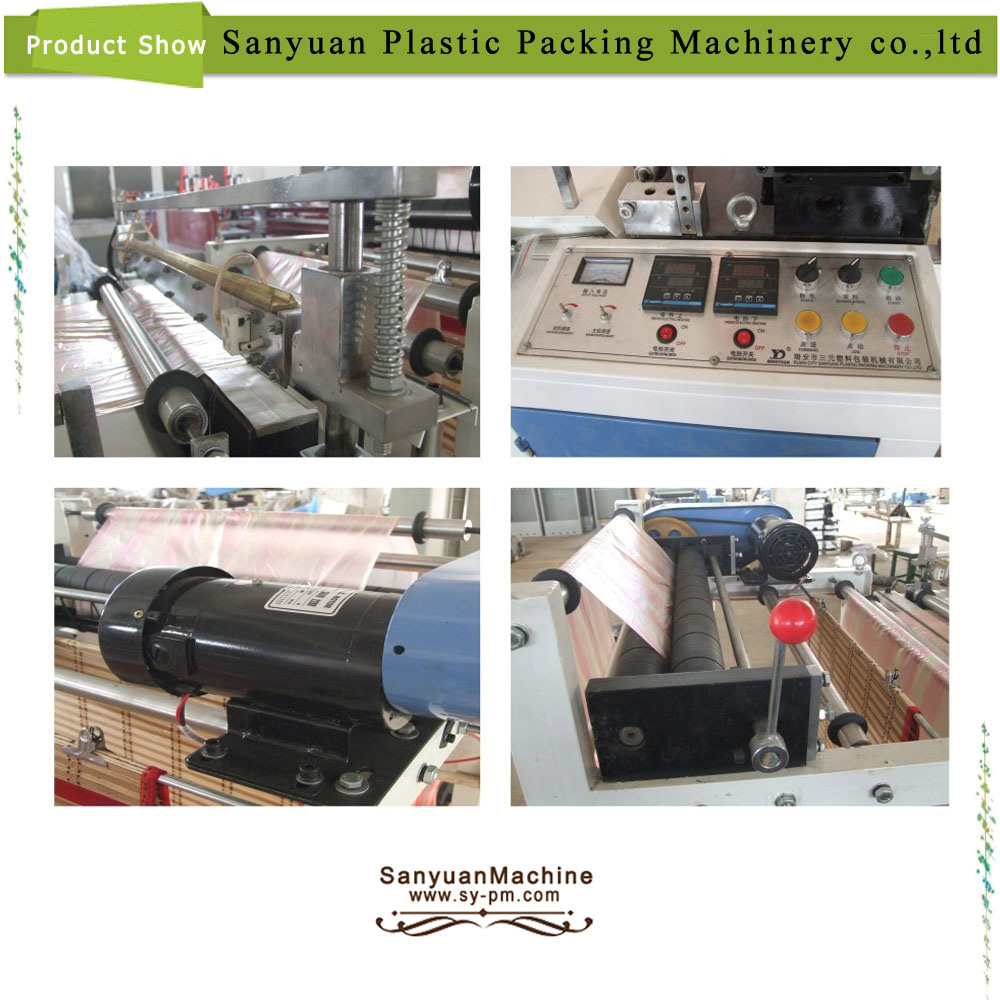

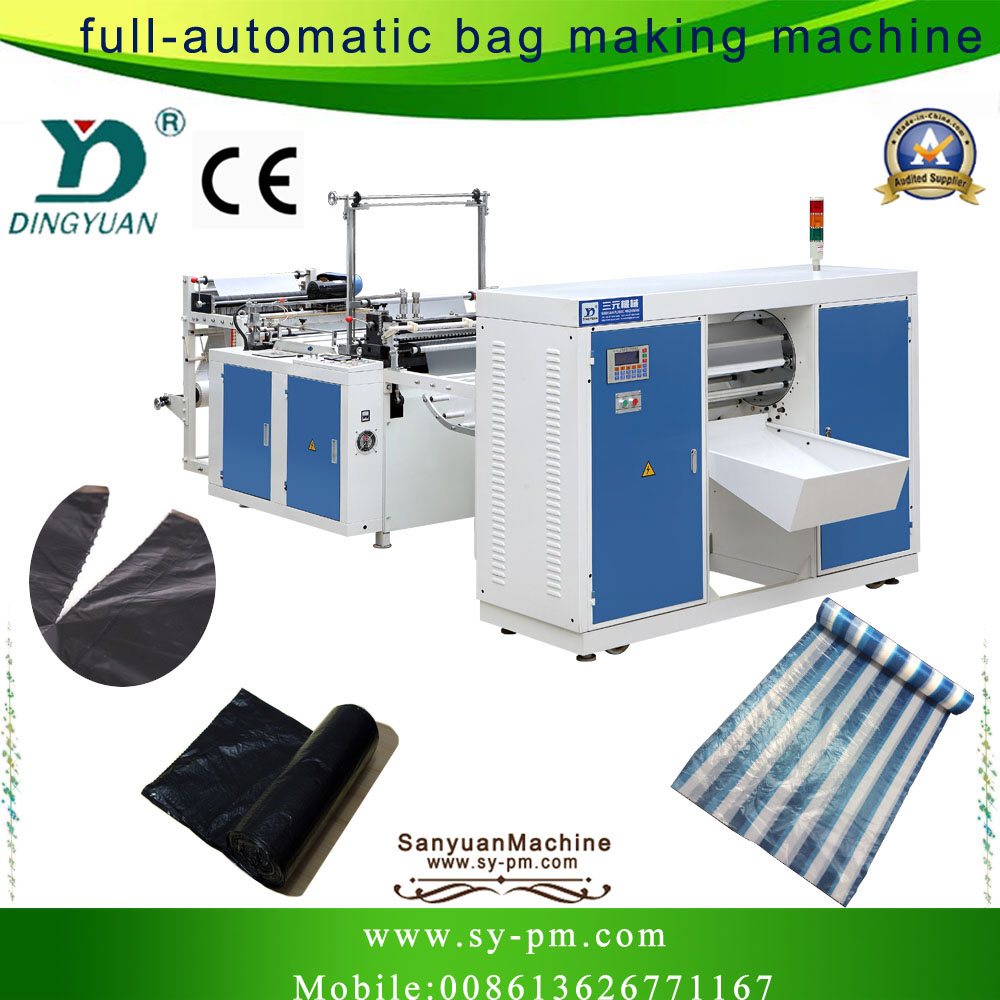

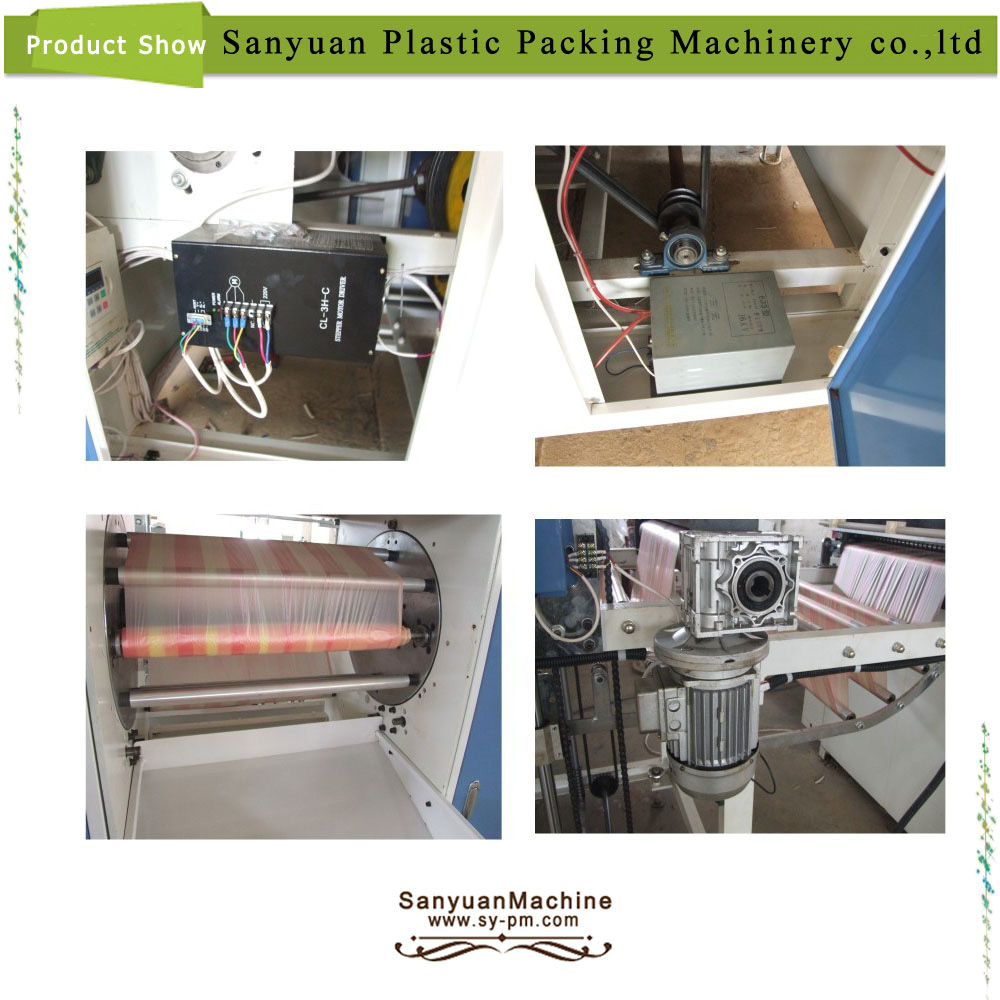

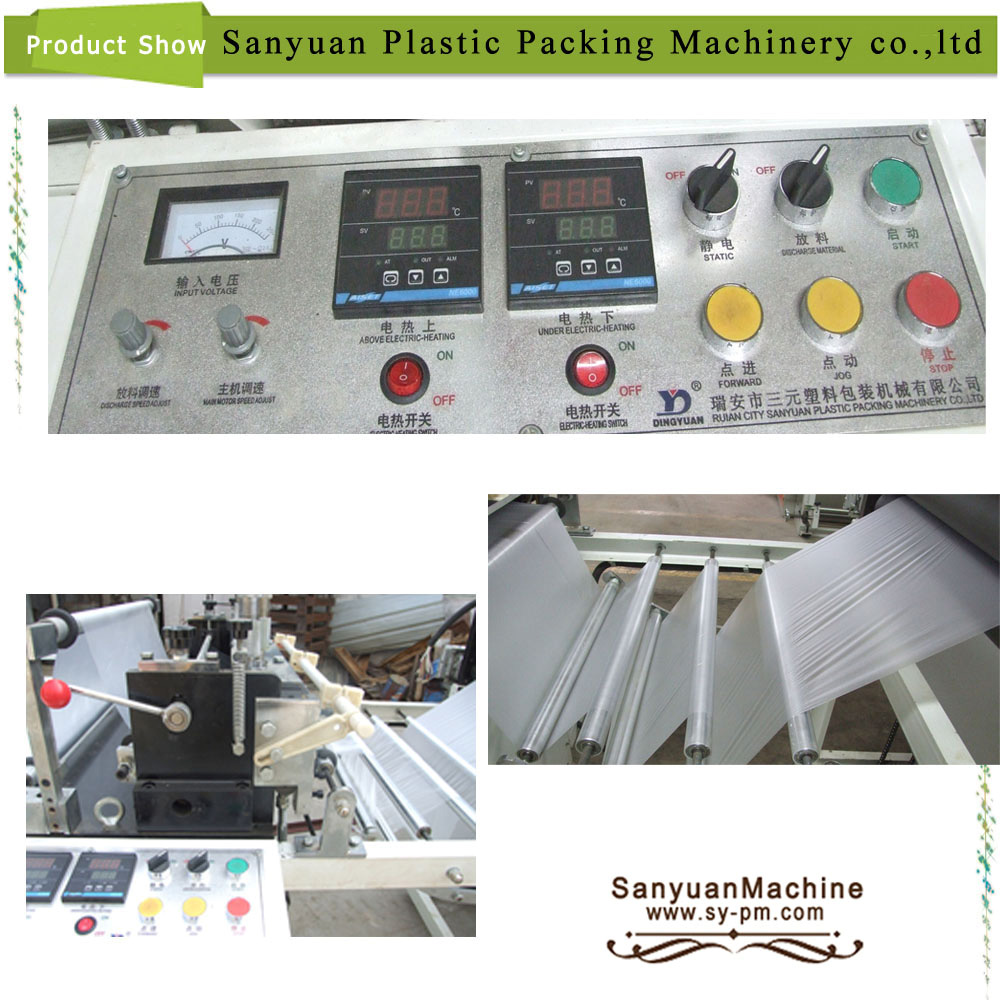

Machine picture:
What is your company Advantages:
1. SGS, CE certificate, Production Assessment, Gold Supplier certificated
2. With 16 patents for different machines, for eg, Model FQG450*2 can produce 500 pcs/min Plastic T-shirt bags
3. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
4. Perfect after-sale system, setted up more than 5 Agents in DUBAI, ETHIOPIA , RUSSIA, BANGLADESH, etc ; more than 5 experienced technicians work abroad.
5. Yearly Production Capacity -- 200-300 sets
6. Prompt Reply Within 12 Hours
