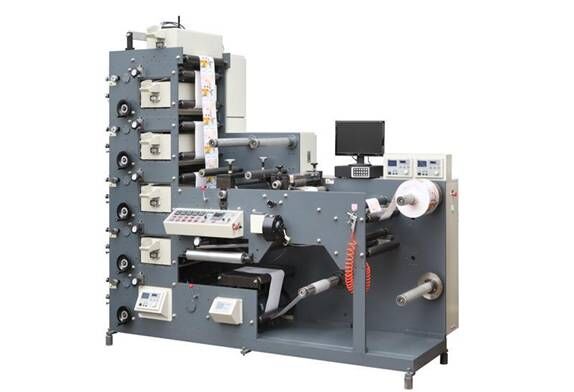

Automatic Label Printing Machine
Introduction：
1、The main motor adopts imported stepless frequency control.
2、Feeding and discharging device are controlled through magnetic powder brake and clutch (Japanese Mitsbish aut tension controller).
3、Adopt ceramic mesh distrnic mesh distributor roller,which is durable,wear proof,corrosion resistance.It is favorable to reduce the replacement frequency of mesh roller and improve the printing efficiency.
4、The printing unit can register in 360degress;each printing unit can mesh roller and improve the printing efficiency.
5、Every printing unit equipped with a group of infrared dryers respectively.
6、The redding and discharging device use air-expansion core shaft.
7、The inking roller can automatically fall off at stoppage and ratate at low speed in order to keep the ink from being dry and solid.
8、The roll feeding,printing,polishing,auto infrated drying,laminating and rolling can be processed in one processing.
9.It features wide application,pollution-free of printing ink,high economic benefit,and high printing speed. So it is an ideal printing machine for the commercial bill,paper card,and high-class free adhesive label.
Product parameters：
|
Printing
speed |
60（m/min） |
|
|
|
|
Printing color |
6（color） |
|
|
|
|
Max web width |
320mm |
|
|
|
|
Max
printing width |
310mm |
|
|
|
|
Max
feeding diameter |
600mm |
|
|
|
|
Max
winding diameter |
500mm |
|
|
|
|
Precision girth |
175-320mm |
|
|
|
|
Precision of overprint |
±0.1mm |
|
|
|
|
Overall
dimensions(L*W*H) |
3.1*1.5*2.8m |
|
|
|
|
Machine weight |
(about)3500kg |
|
|
|
