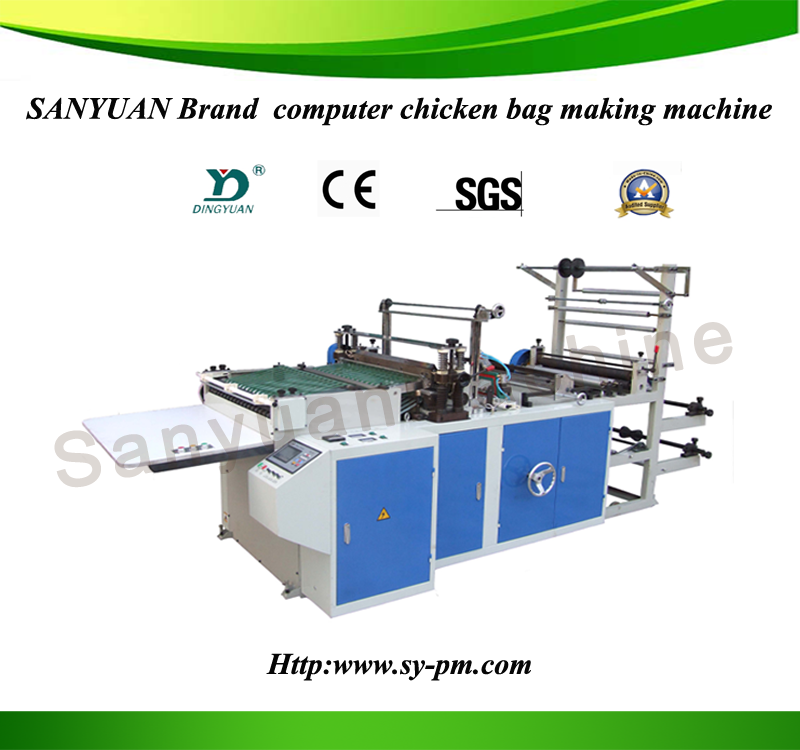

FQCS-700 Computer hot-cutting side-sealing bag making machine is
not only suitable for opp
packing of hot-cutting and edge-sealing.
According to the customer's requirements, it can be fitted
ultrasonic, air-punch and double-tape
gluing device.
The machine has such features as microcomputer controlling,
transducer regulating, photoelectric tracking and tension
adjusting, with high automatic function and stable performance,
easy to operate which is widely used for making plastic
bags.
Main Technical
Parameters:
|
Model type |
FQCS-700 |
|
Sealing and cutting Width |
<700mm |
|
Sealing and cutting Length |
60-700mm |
|
Sealing and cutting Thickness |
0.01-0.05mm |
|
Bag-making Speed |
30-260pcs/min |
|
Machine Power |
3.5kw |
|
Power Supply |
220v 50hz |
|
Complete Weight |
700kg |
|
Overall Dimensions(L*W*H) |
2900*1150*1250mm |
FQCS MODEL BAG MAKING MACHINE 1 SET
FREE SPARE PARTS
|
No |
Spare parts name
|
Quantity |
|
1 |
Spring for
sending material |
50pcs |
|
2 |
Temperature |
1pcs |
|
3 |
Green running
belt |
16pcs |
|
4 |
Tool Box |
1set |
|
5 |
Contact |
1pcs |
|
6 |
Relay |
1pcs |
|
7 |
English book |
1pcs |
|
8 |
English manual |
1pc |

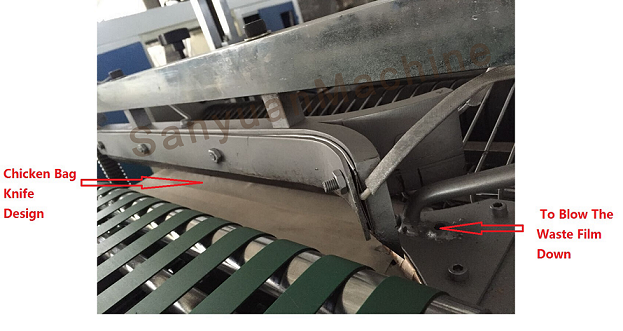

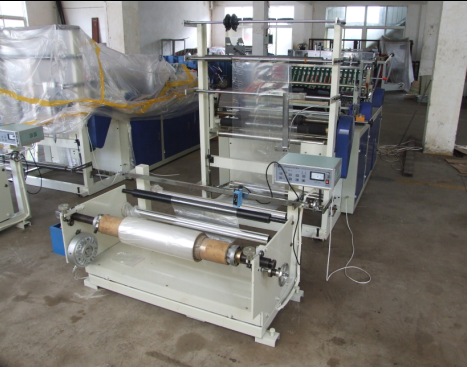

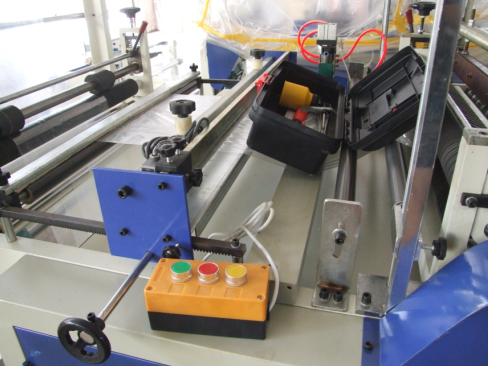

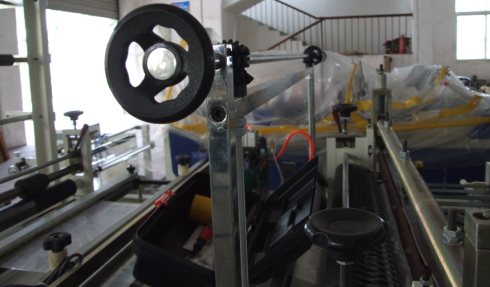

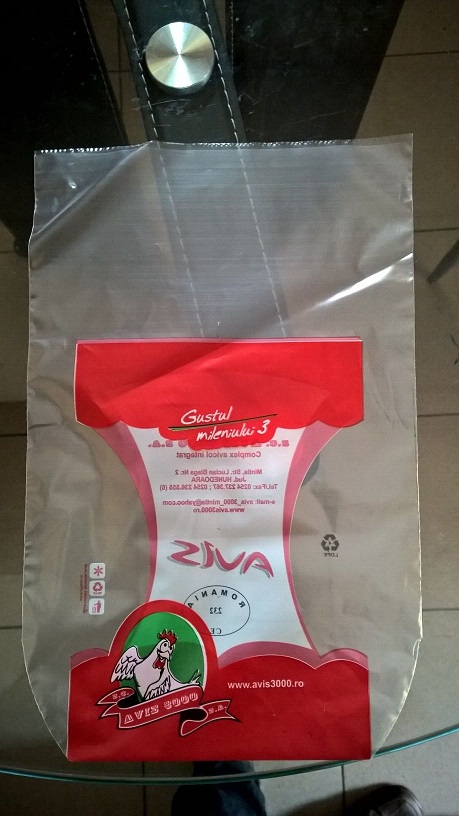

>> More
Photos

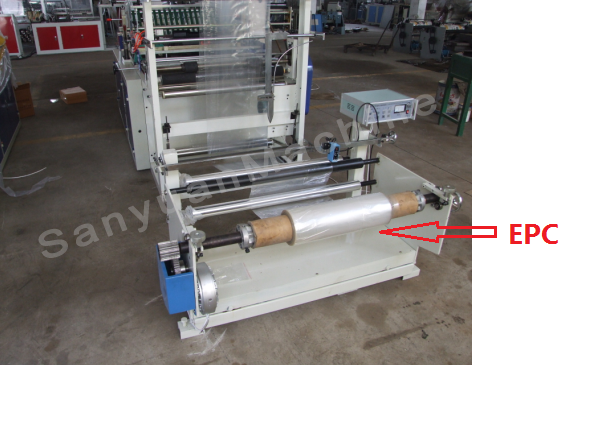

EPC
device
Design
1.
Design 2.
