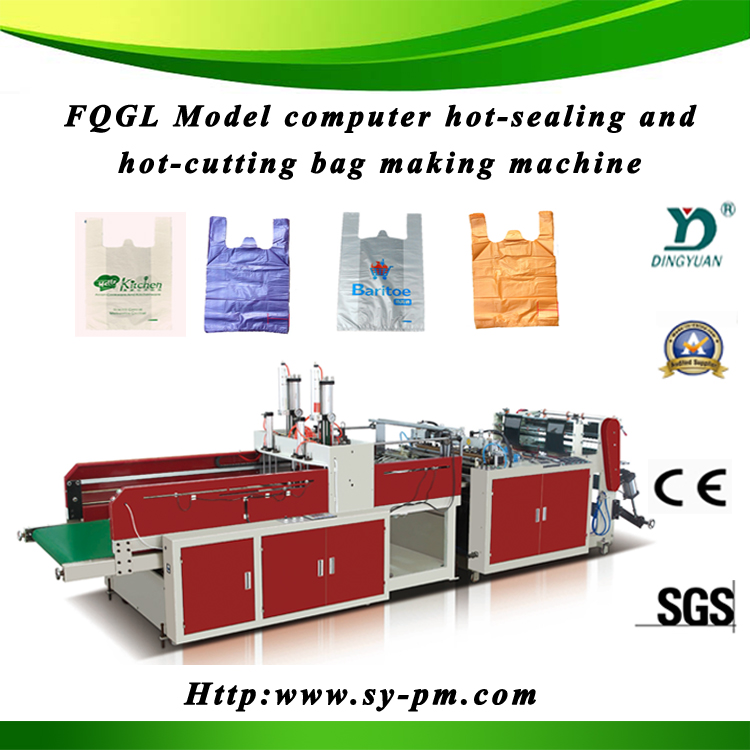

FQGL450×2 Lines model computer hot-sealing and hot-cutting bag making machine

Date:2018-05-04



Technical Features:

1

Model

FQGL450*2

2

Machine Name

Computer hot-sealing and hot-cutting vest bag maker

3

Speed

140-200cut/min

4

Colors

RED and WHITE

5

HS Code

84778000

6

MOQ/Min order quantity

1SET

7

Lead Time

On Receiving the deposit, the machine producing time is 30-45days

8

bag making machine

http://www.youtube.com/watch?v=6eivFTpoUKQ

9

company introduction

http://www.youtube.com/watch?v=k95kEm8LEhs

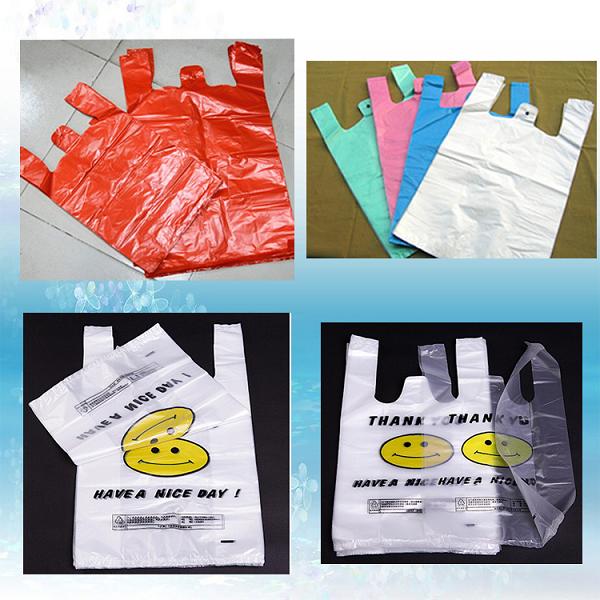

  1. Applications: FQGL450×2 Lines model bag making machine is suitable for making print bags or no-print bags.
  2. Double line production system: this machine can produce print or no-print bags by two production lines. In this way, the labor salary is saved.

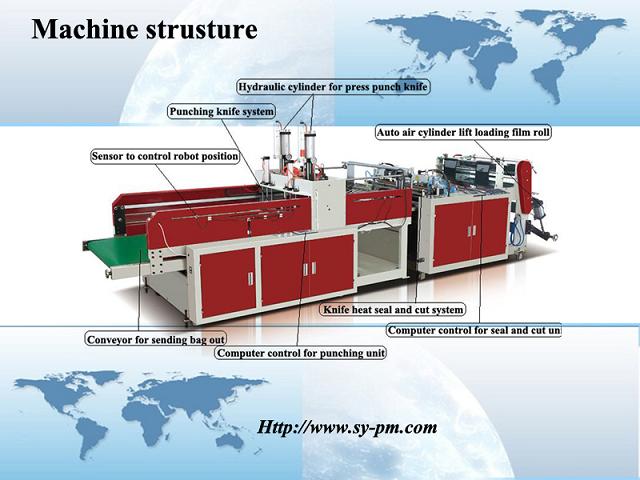

  3. Fully automatic: it can do one-line production of the following steps: heat sealing, heat cutting, punching, sending bags out by conveyor belt, folding bags, and waste film delivering. All the above steps is done by one machine.

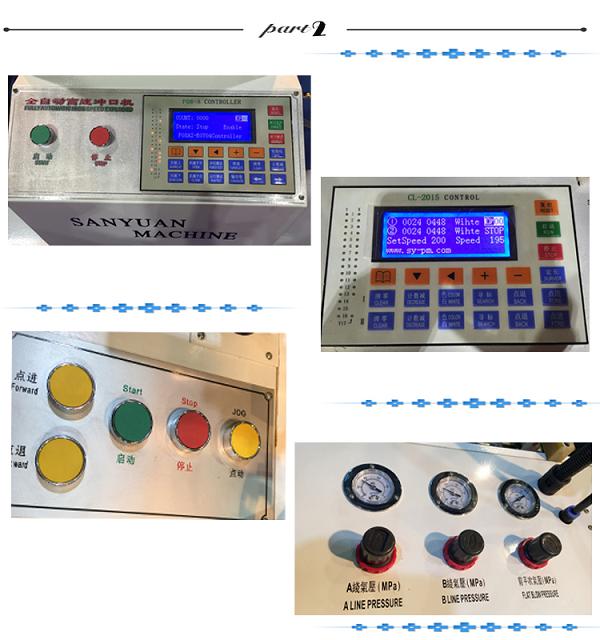

  4. Independent control system: the sealing and cutting device adopts one computer to control the machine. The punch device adopts another computer to control. Therefore, it is independent control system. If moving the punch unit out, the sealing and cutting device also can make flat bags.
  5. Double punch: Two air cylinder device will be installed on the machine to do “M” shape cutting with heavy power. Moreover, two “M” shape knives will be installed on the machine to do two line punch production easily.
  6. Bags Conveyor belt: it adopts conveyor belt to send bags out in order.
  7. Waste film conveyor belt: the waste film under the machine will be delivered out by another conveyor belt under the machine.
  8. Double photo cell: Two photo cells will be installed on the sealing and cutting unit to track the print mark for print bags in two production line.
  9. Its machine has the following more features: automatic temperature control, double driver, double sealing knife, automatic counting system, alarm system.



Technical Parameters:

MODEL

FQGL450×2

Bag Width (Max)

410MM×2

Bag Length

300-600MM

Accuracy Length

±1

Speed Cut/Min

140-200CUT/MIN

Motor

3KW

Heater

2.8KW

Power Required

6KW

Dimension (L×W×H)

5500×1450×1800mm

Gross Weight

2300kg

Free spare part list:

No

Spare parts name

Quantity

1

Spring for sending material

100pcs

2

High temperature tape

1box

3

Heating sheet

2pcs

4

Tool

1SET

5

Punch board

2pcs

6

Synchronic belt

1pcs

7

Punch knife

4pcs (2size)

8

Temperature meter

1pc

9

Voltage adjust meter

1pc

10

Close switch

1pc
