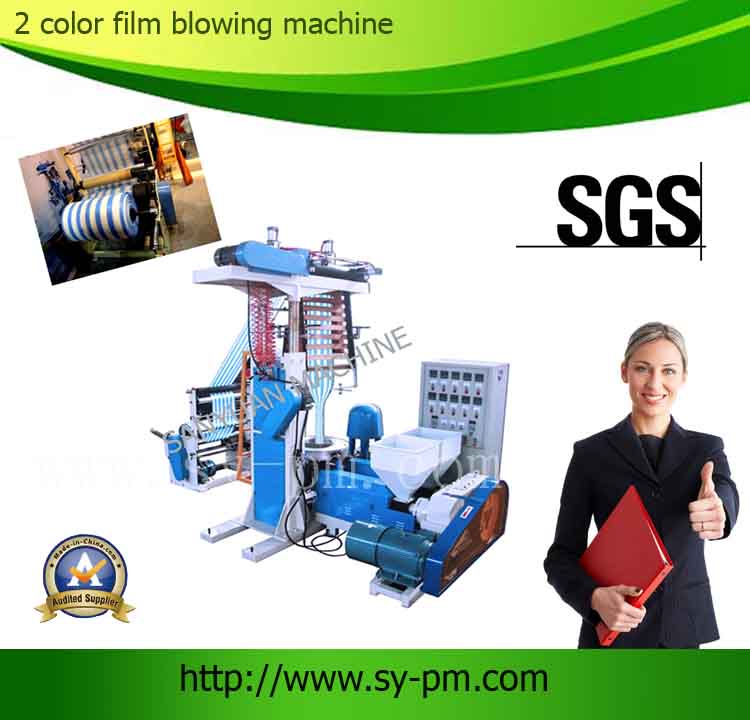

SJ-45*2 color film blowing machine
|
|
|
|
|
bag.maker |
|
|
0086-13626771167 |
Product Description:
Application:
It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polyethylene (HDPE) color striped plastic film, etc, Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products.
Characteristics:
The cylinders and the screw stems of model SJ-45*2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag ,The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Parameters:
|
MODEL |
SJ-45*2 COLOR |
|
Raw Material |
HDPE, LDPE |
|
Film Thickness |
0.01-0.08mm |
|
Folding Width Of Product |
200-600mm |
|
Max Output |
40 KG/H |
|
Whole Power Required |
40KW |
|
Overall Dimension |
5000×2500×4000MM |
|
Gross Weight |
1400KG |
|
EXTRUDER |
|
|
Screw Diameter (MM) |
Φ45MM |
|
Screw Ratio |
28:1 |
|
Driving Motor (Inverter) |
15KW/20HP |
|
Heating Power |
20KW |
|
Screw Speed |
10-110 RPM |
|
Cooling Blower |
1.5KW/2HP |
|
Temp. Controller |
10ZONE |
|
DIE |
|
|
Die Diameter (MM) |
Φ70MM |
|
Heating Power |
7KW |
|
TAKE-UP UNIT |
|
|
Take-up A.C. Motor/ Inverter |
1.1KW/1.5HP |
|
Take-up Roller Width |
700MM |
|
WINDER |
|
|
Winding Roller Width |
700MM |
|
Winding Torque Motor |
10N/M |
Free Spare Parts:
|
No. |
Spare parts name |
Quantity |
Notes |
|
1 |
Temperature meter |
1set |
|
|
2 |
Electric Sensor |
2 pcs |
|
|
3 |
Heating ring |
3 pcs |
|
|
4 |
Tool box |
1set |
|
|
5 |
English manual |
1pc |
|
|
6 |
Die head |
2 different size |
One on the machine, and another one as spare part |
More Pictures:
Packaging & Shipping:
Sanyuan Factory will pack the machine with two times film package.
If customer needs wooden case, it needs additional charge.
Shipping sea freight cost paid by buyer.
Sanyuan Factory should help buyer to choose a good shipper agent, to
insure the machine arrive in buyer country safely.
