Alibaba Gold Supplier Ruian Sanyuan Factory Full Automatic high speed Plastic Shopping Bag Making Machines (200cut/min)

Quick Details

Packaging & Delivery

Packaging Details:	Full Automatic Plastic Shopping Bag Making Machines can be packed with wooden case/ wooden pallet/strench film/ as customer requirement Fully Automatic Plastic Bag Making Machine is with Film wrapped and then exporting standard wooden case, 8 machines can be loaded in a 40 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual
Delivery Detail:	On receiving the deposit, the delivery is 15-30 days

Packaging Details:

Full Automatic Plastic Shopping Bag Making Machines can be packed with wooden case/ wooden pallet/strench film/ as customer requirement Fully Automatic Plastic Bag Making Machine is with Film wrapped and then exporting standard wooden case, 8 machines can be loaded in a 40 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual

Delivery Detail:

On receiving the deposit, the delivery is 15-30 days

Specifications

Plastic Bag Making Machines
Computer Control
Two punch knife unit
Photo Cell
200-250cut/min/line

1	Model	*FQCH-HS4502**
2	Machine Name	Computer hot-sealing and hot-cutting vest bag maker
3	Speed	200cut/min
4	Colors	RED and WHITE
5	HS Code	84778000
6	MOQ/Min order quantity	1SET
7	Lead Time	On Receiving the deposit, the machine producing time is 30-45days
8	bag making machine	http://www.youtube.com/watch?v=6eivFTpoUKQ
9	company introduction	http://www.youtube.com/watch?v=k95kEm8LEhs
10	Remarks	skype:extrudersanyuan Tel:+86-577-65878855 Mob:+86 13626771167

Technical Features:

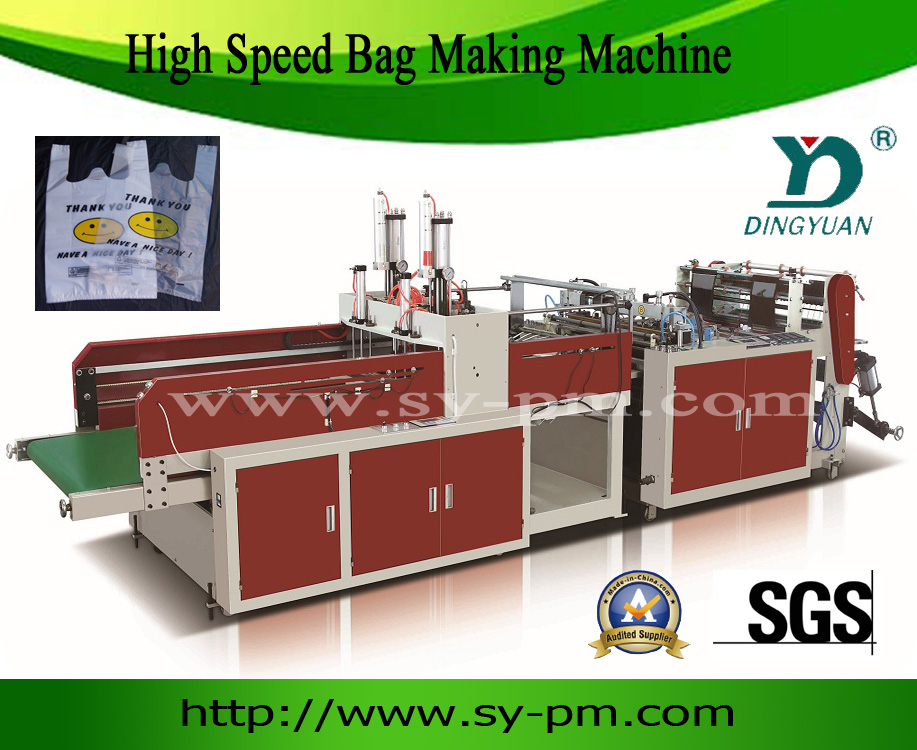

Applications: FQCH-HS 450×2 Lines model bag making machine is suitable for making print bags or no-print bags.
Double line production system: this machine can produce print or no-print bags by two production lines. In this way, the labor salary is saved.
Fully automatic: it can do one-line production of the following steps: heat sealing, heat cutting, punching, sending bags out by conveyor belt, folding bags, and waste film delivering. All the above steps is done by one machine.
Independent control system: the sealing and cutting device adopts one computer to control the machine. The punch device adopts another computer to control. Therefore, it is independent control system. If moving the punch unit out, the sealing and cutting device also can make flat bags.
Double punch: Two air cylinder device will be installed on the machine to do “M”shape cutting with heavy power. Moreover, two “M” shape knives will be installed on the machine to do two line punch production easily.
Bags Conveyor belt: it adopts conveyor belt to send bags out in order.
Waste film conveyor belt: the waste film under the machine will be delivered out by another conveyor belt under the machine.
Double photo cell: Two photo cells will be installed on the sealing and cutting unit to track the print mark for print bags in two production line.
Its machine has the following more features: automatic temperature control, double driver, double sealing knife, automatic counting system, alarm system.
Free spare part list

No	Spare parts name	Quantity
1	Spring for sending material	100 pcs
2	High temperature tape	1box
3	Heating sheet	2 pcs
4	Tool	1SET
5	Punch board	2pcs
6	Synchronic belt	1pcs
7	Punch knife	4pcs (2size)
8	Temperature meter	1pc
9	Voltage adjust meter	1pc
10	Close switch	1pc

Technical Parameters:

MODEL	FQCH-HS450×2
Bag Width (Max)	400MM×2
Bag Length	300-600MM
Accuracy Length	±1
Speed Cut/Min	200CUT/MIN
Motor	3KW
Heater	2.8KW
Power Required	6KW
Dimension (L×W×H)	5500×1450×1800mm
Gross Weight	2300kg
