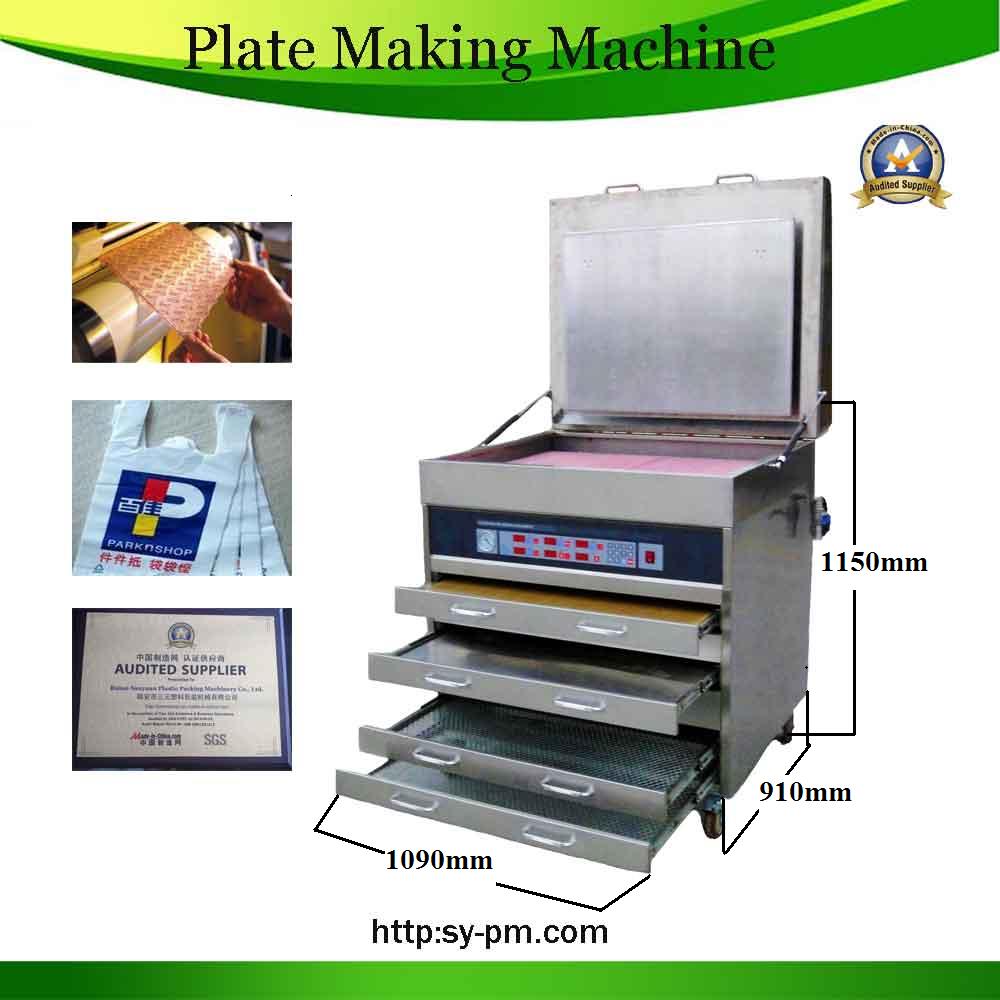

SJ-800 2015 new product High speed Plastic
Plate Production Line
FOB Ningbo Price : 4500USD
Application:
This equipment incorporates plate-washing ,plate-solarizing,glutiosity-free and plate-drying ,In addition ,It adopts lower brush to wash plate rotatablely .with high precision on plate-making and convenient operation .It is an ideal equipment for making flexible printing plate
Technical Parameters:
1. It is made of stainless steel, featuring in durability and won’t get rusty.
2. Opted imported Philip specific printer lamp, Philip rectifier(frequency transforming type is good for registering).
3. Imported slow reflective violet suction membrane(Japan Toyo)
4.controller enables it to be easily operated.
5. Adopted American digital integrated thermo sensor.
6,Adopted American thermo sensor.
7. Japanese Panasonic or oriental printing plate washer, Japanese ORIX constant dry oven, featuring in strong wind.
8.Adopted Philip specific UVC light source for removing the sticking sheet.
9. Integrated exposure, washing printing plate and removing sheet, it is a good
equipment for making soft printing plates.
Main Technical Variables
|
Model |
Printer area |
Machine dimension: w*d*h |
power |
Plate thickness
make |
Wooden case dimension
w*d*h |
Wooden case weight |
FOB china mainland port |
|
SJ-400 |
430*320mm |
710*610*1050mm |
2.2kw |
1-7mm |
780*670*1270mm |
120kg |
2000USD |
|
SJ-600 |
600*400mm |
860*710*1050mm |
2.3kw |
1-7mm |
970*770*1270mm |
150kg |
2500USD |
|
SJ-800 |
800*600mm |
1090*910*1150mm |
3.5kw |
1-7mm |
1200*980*1440mm |
220kg |
4500USD |
|
SJ-900 |
900*600mm |
1190*910*1150mm |
3.7kw |
1-7mm |
1300*980*1440mm |
260kg |
4900USD |
|
SJ-1000 |
1000*600mm |
1290*910*1150mm |
3.8kw |
1-7mm |
1400*980*1440mm |
300kg |
5400USD |
|
SJ-1200 |
1200*600mm |
1490*910*1190mm |
3.9kw |
1-7mm |
1600*980*1480mm |
360kg |
5800USD |
|
SJ-1200*900 |
1200*900mm |
1490*1210*1190mm |
4.2kw |
1-7mm |
1600*1330*1480mm |
400kg |
6800USD |
|
SJ-1200*1000 |
1200*1000mm |
1490*1310*1190mm |
4.5kw |
1-7mm |
1600*1430*1480mm |
460kg |
7200USD |
FAQ
Q: What is your MOQ of this item?
A: 1 set per style
Q: What is the lead time and where is your loading port ?
A: It depends on your order quantity. Ningbo, China Port.
Q: Is it all right to make customer's own brand name?
A: That’s all right to make your own brand name.
Q: What are your payment terms?
A: 30% deposit, and the balance will be paid by T/T before shipment or L/C at sight.
