Packaging & Delivery
| Packaging Details: | wooden case /wooden pallet /strench film ENGLISH MANUAL |
|---|---|
| Delivery Detail: | 15-30dys |
Specifications
corona treater
1.plastic film impactor
2.easy to operate
Application:It is used for treating all kinds of plastic film and sheet.
The Main Feature
1. It adopts high voltage fast-switching power transistor for invert circuit
2. High efficiency, high operating frequency. (8-25KHz)
3. Power output is continuous adjustable.
4. Electronic protection and low speed automatic off.
5. Server in the film production, printing, gelatinize, and complex unit.
Technical details
1. Treating side: Double Side
2. Silicon Sleeve Diameter: 45mm
Technical Parameters
|
Type |
Power supply |
Operation frequency |
The max output power |
The max treating width |
Treating material |
|
2001 |
AC220V50HZ |
8-25KHz |
1.5KW |
650mm |
PP,PE,PS etc. plastic film, metal film |
|
2002 |
AC220V50HZ |
8-25KHz |
2KW |
800-1000mm | |
|
2003 |
AC220V50HZ |
8-25KHz |
3KW |
1000-1200mm | |
|
2004 |
AC220V50HZ |
8-25KHz |
4KW |
1500mm |

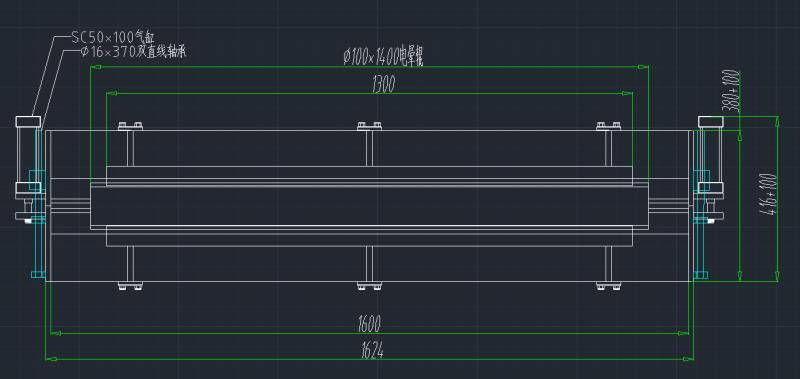

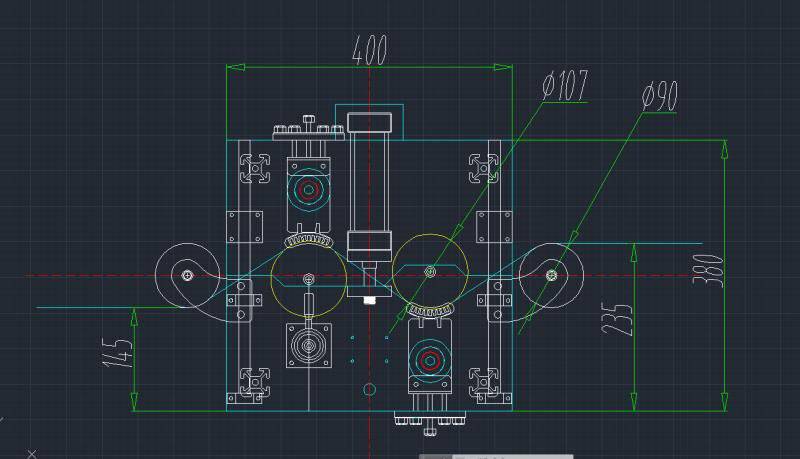

PROFESSIONAL DESIGN
