http://youtu.be/LacFPdWvZXMMain specification:
Output: 70-90kg/h
l Applicable raw material:
HDPE/LDPE, PP materials
l Power supply: 380v, 50Hz 3 Phase
l Material of screw and barrel:
Alloyed high-quality steel 38CrMoAlA
with optimum
hardness and strong corrosion resistance after
precision
finishing and nitrogen treatment
l Gear box: Hard Surface Gear
l Automatic temperature controlling
system
l Including water-cooling device
made of stainless steel
l

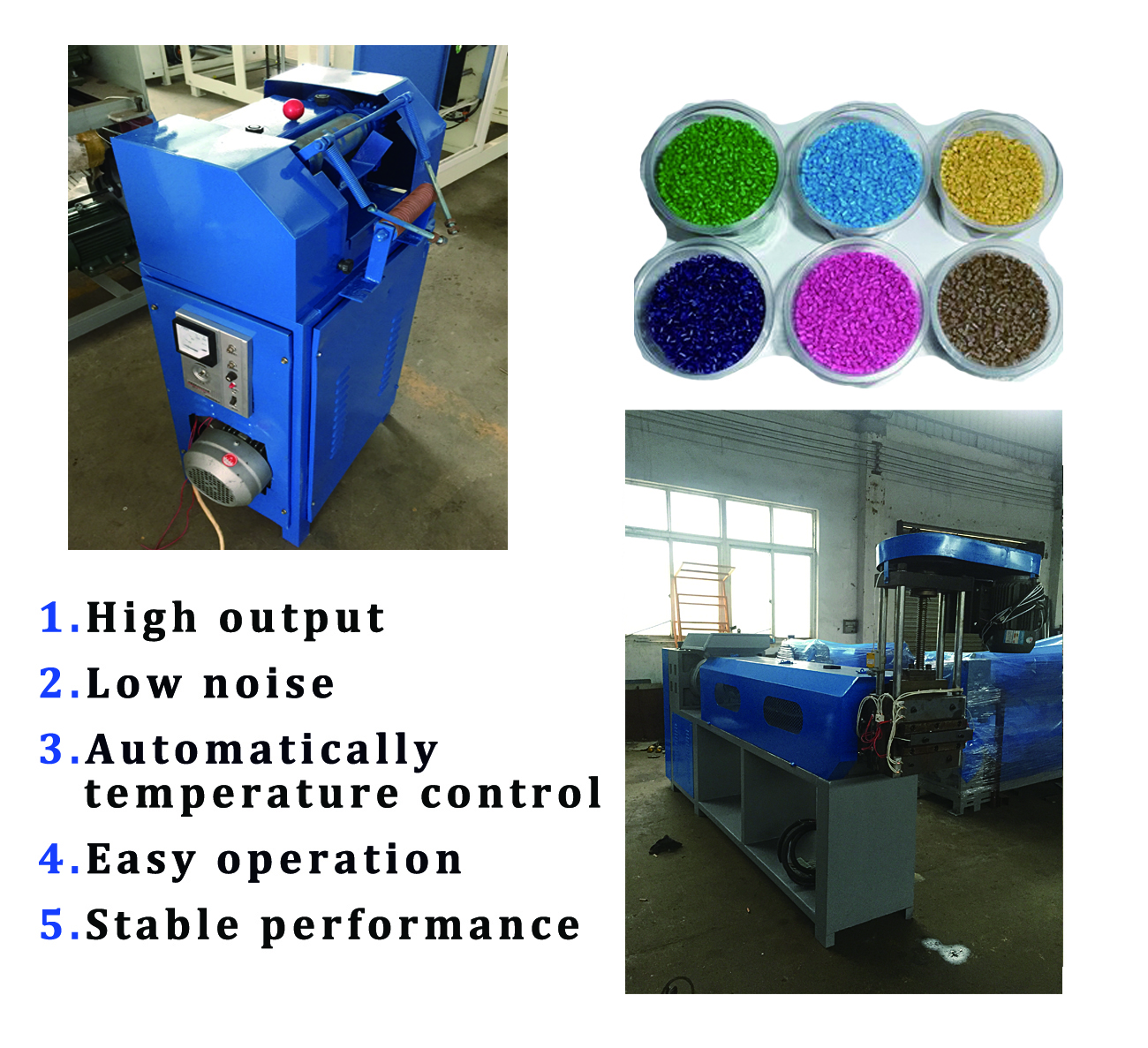

Including granule cutter

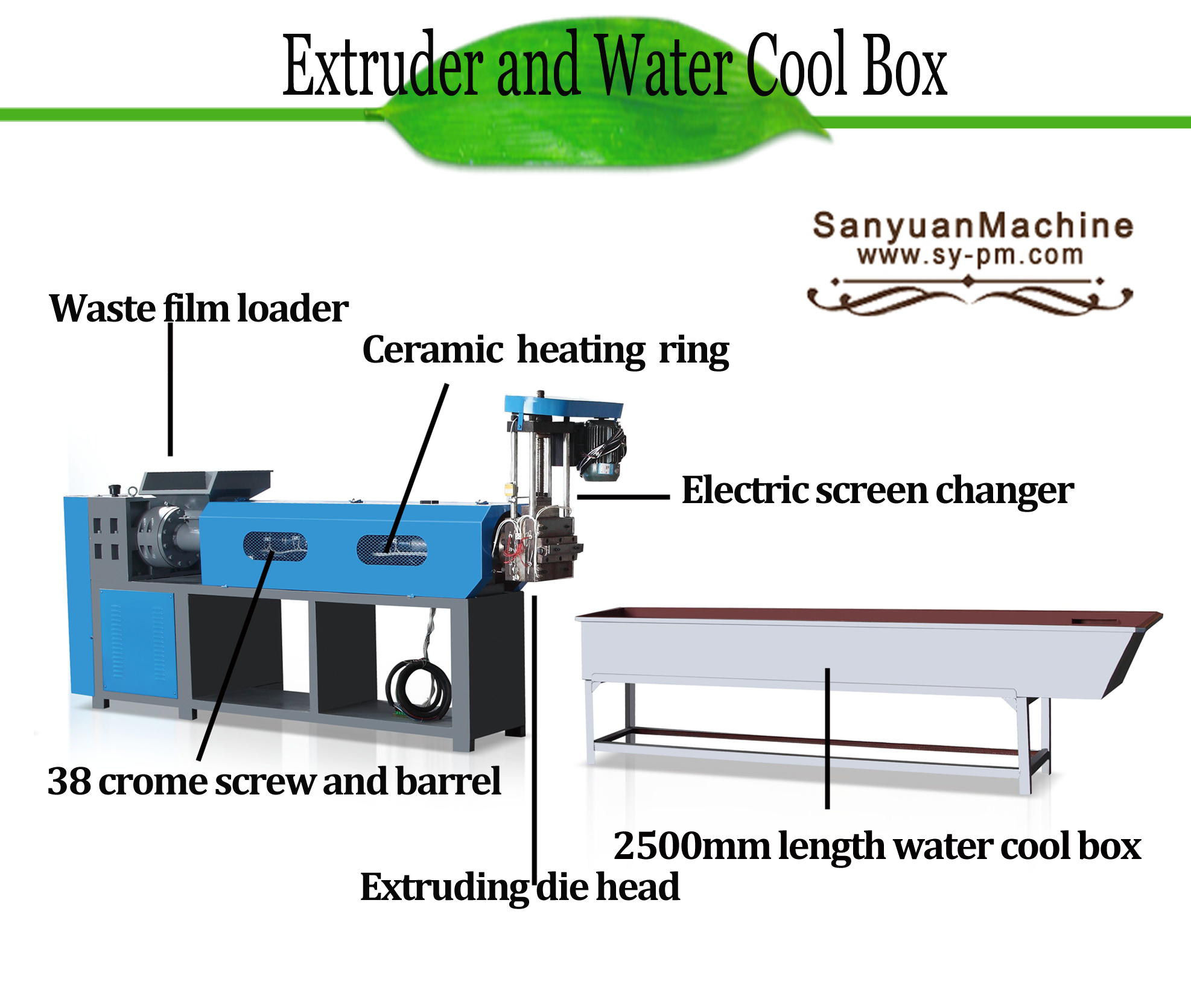

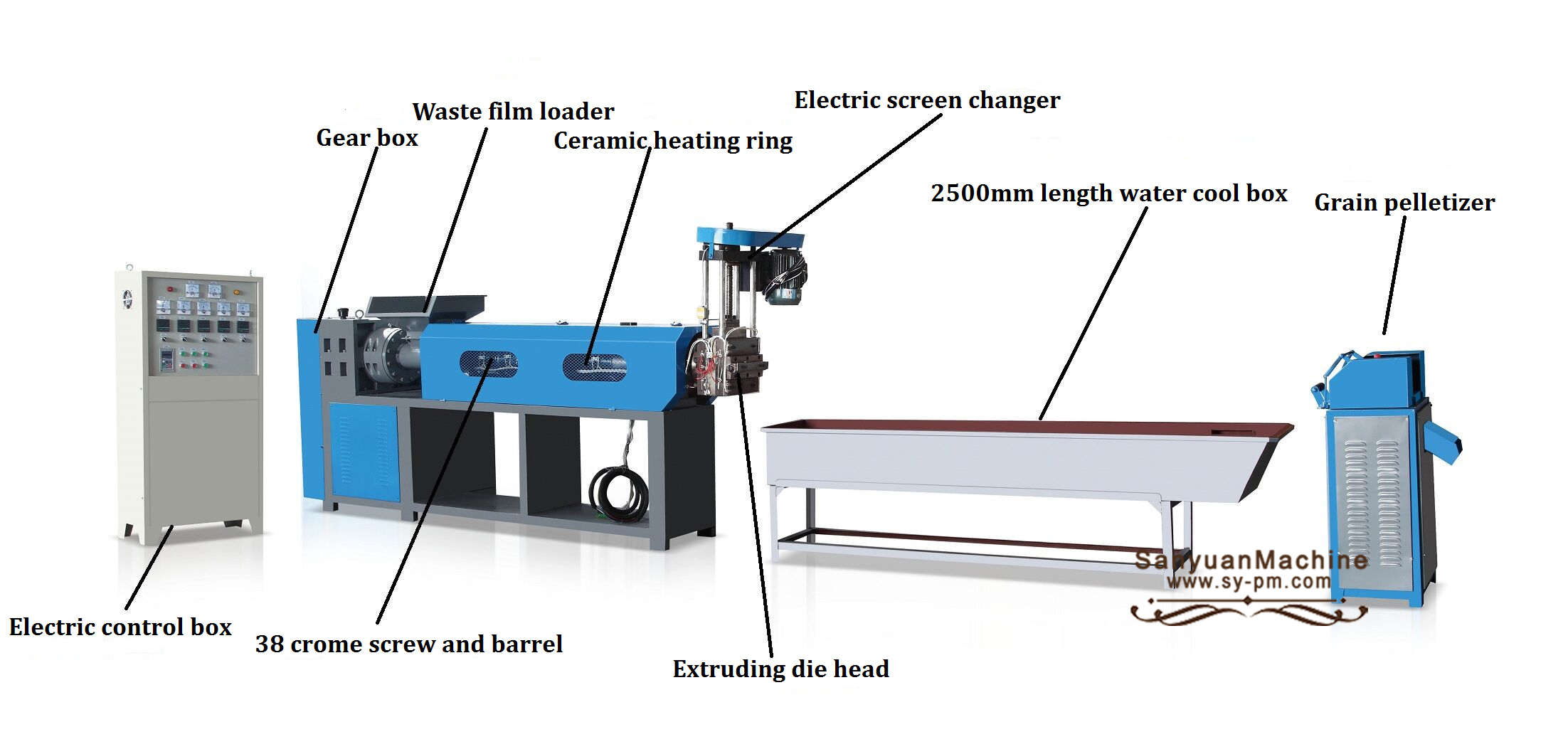

Main Extrusion Unit
l
Main extruder
l
Main motor :22kw
l
Screw Diameter: Φ 97mm
l Screw ratio: L/D20: 1
Main Technical Parameters:
|
Model |
SD-100 |
SD120 |
|
Production |
70-90kg/hour |
100-120kg/hour |
|
Main Extruder
Screw Size |
97mm |
117mm |
|
electric Screen
Changer |
Yes |
Yes |
|
Force Feeder |
Optional |
Optional
|
|
Main Motor Size
|
22kw |
37kw |
|
Main Extruder
LD |
20:1 |
20:1 |
|
Main Motor
Inverter |
22kw |
37kw |
|
Cutter Motor |
1.5kw |
1.5kw |
|
Main Extruder
Gear Box Hard Teeth |
180Model |
200model
|
|
Ceramic Heating
Ring |
6pcs |
8pcs |
|

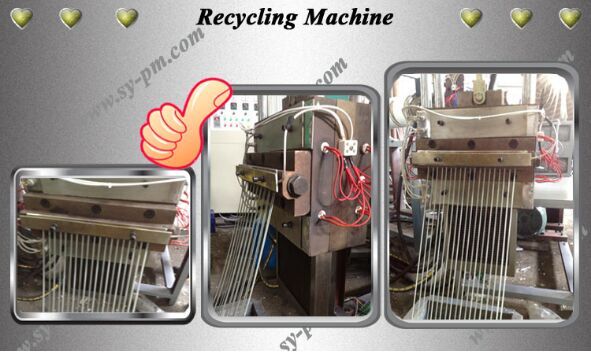

Die Head
Heating Sheet |
3pcs |
3pcs |
|
Die Head Hole
Numbers For Second Extruder |
13-15pcs |
13-15pcs |
|
Cutter Knife
Width |
180mm |
230mm |
|
Cutter Knife
Numbers |
7pcs |
7pcs |
|
Main Extruder
Dimension |
2500*700*2200 |
3300*950*2400 |
|
Water Cool Box
Dimension |
2500*330*330 |
2500*330*330 |
|

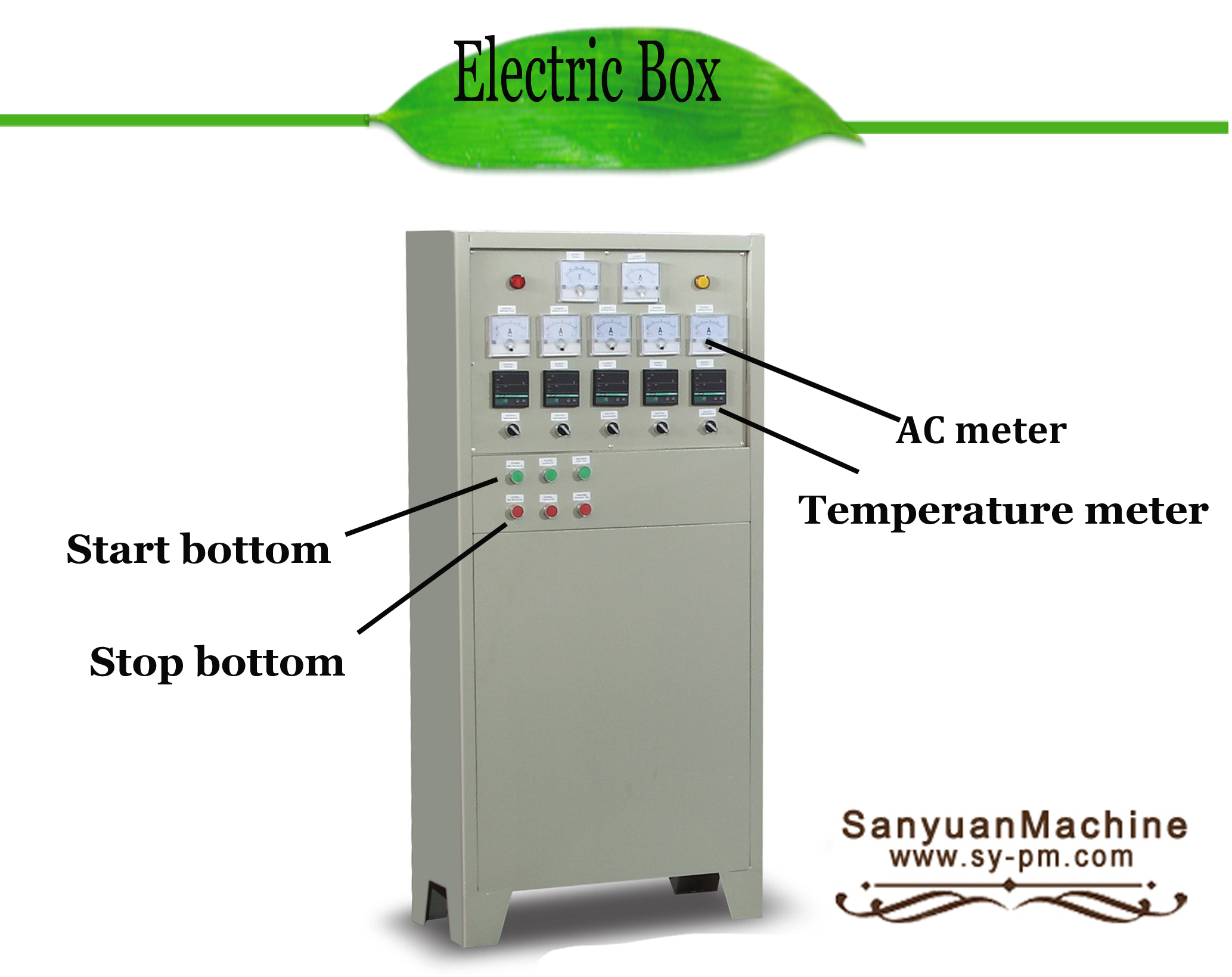

Electric
Cabinet Dimension |
750*450*1600 |
750*450*1600 |
|
Grain Cutter
Dimension |
800*800*1100 |
800*800*1100 |
Free Spare Parts:
|
No. |
Spare parts name |
Quantity |
|
1 |
Temperature meter |
1set |
|
2 |
Electric Sensor |
2 pc |
|
3 |
Heating ring |
3 pc |
|
4 |
Tool box |
1set |
|
5 |
English manual |
1pc |
