Product name

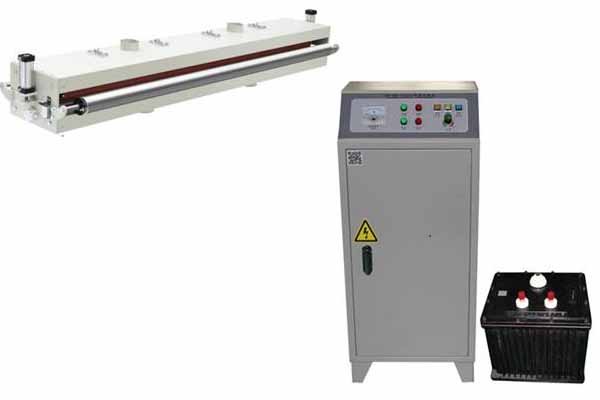

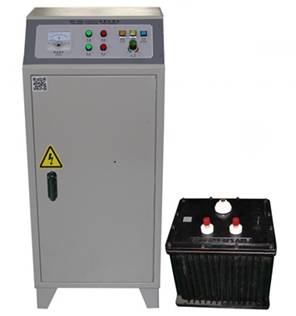

HW-3006 Corona Treater Generator(IGBT Module)


Input power

AC380V±10%,50/60HZ

Output power

0~6KW

Output voltage

15KV

Working frequency

19KHZ

Power modulation

Continuously adjustable

Environment Temperature

-10 ℃~+40℃

Environment Humidity

20%~93%

Generator                           （Packing size wooden case）

460*370*960mm    50KG

Transfomer                            （Packing size wooden case）

450*450*500mm    60KG

Parts

One medium voltage line,Two high tension lines,Manual

1. It adopts the imported driver circuit and power organ IGBT in the full bridge main Loop.                    2. Fixedness operating frequency Adjust the width of pluse to adjust the output.                            3. It has the function of soft-start, which can reduce the pollution to the net and protect the equipment.                                              4. It has kinds of protection such as phase absenece, overcurrent and excess temperature.                                 5.The protections of stop-running and rake-opening prevent theroller from burning.

Product name

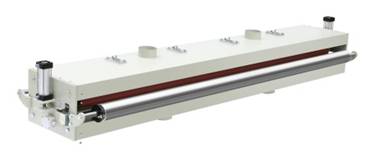

Corona Station


1.Silicone roller diameterφ90

2.Discharge electrode(2Pcs)

3. With Hall switches, shutdown protection

4. Open the cylinder

5. Ozone exhaust

6. Unique aluminum big six teeth discharge electrode
