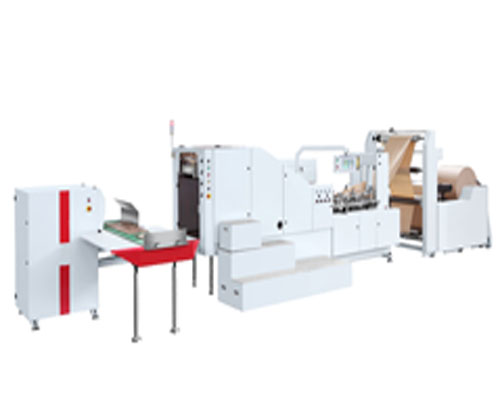

Square bottom pape bag making machine

Date:2018-05-04

Properties and uses

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.



Main features

1.Use Germany origin REXROTH touch screen human-computer interface, operate and control easily.

2.Adopt Germany original REXROTH PC control, integrated with optical fiber, ensure high speed running steadily.

3. Germany original REXROTH servo motor and German original SICK Photoelectric eye correction, tracking printing bag accurately.

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time.

 Technical parameter

 Model

SYFD-330

Paper bag length

270-530mm

Paper bag width

150-330mm

Paper bag bottom width

60-150mm

Paper thickness

60-170g/m2



     Machine Speed

30-250pcs/min



     Paper bag speed

30-200pcs/min

Paper roll width

370-960mm

Roll paper diameter

200-1000mm

Machine power

3phase 4380V        18kw

Machine weight

7500kg

Machine size

9200x3200x1900mm
