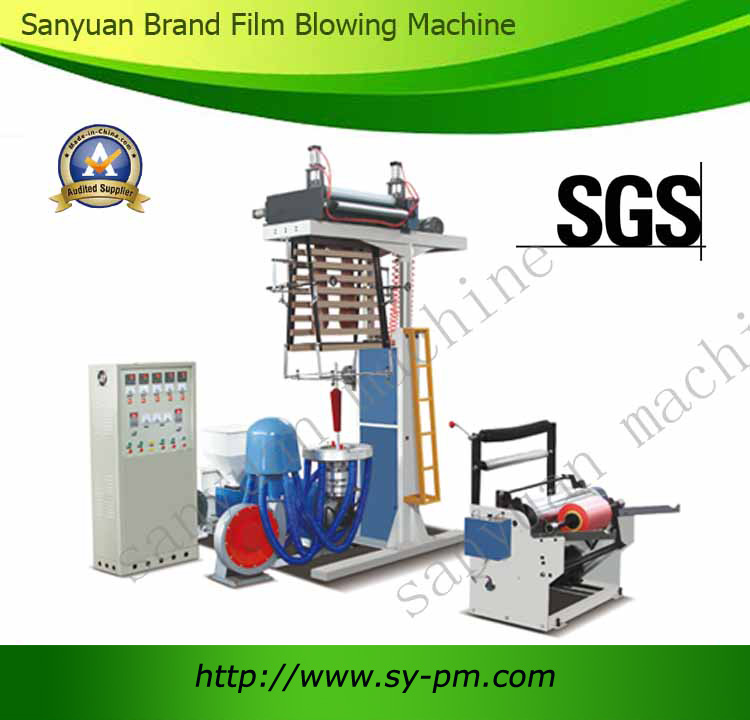

SJ-45(50)Lifting HDPE LDPE Film Blowing Machine

Date：2018-05-04

SJ-45 Lifting Plastic PE Film Blowing Machine

Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANYUAN
  • Model Number: SJ-45
  • Voltage: 380V
  • Power(W): 26kw
  • Dimension(L*W*H): 5000*2000*4000 MM
  • Weight: 1100kg
  • Certification: CE,SGS,ISO9001
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine name: 450 mmPE blown film extruder machine
  • Diameter of product: 45mm
  • Thickness of product: 0.008-0.08 MM
  • Whole Power Required: 26kw
  • Heating Power: 12kw
  • output: 30kg/h
  • Overall Dimensions: 5000*2000*4000 MM
  • Rational Speed of Screw Stem: 10-110rpm
  • Certificate: SGS
  • Origin: Ruian city , zhejiang province, china

Packaging & Delivery

Packaging Details
plastic film blowing machine/wooden case package/ depends on customer requirement. Film Blowing Machine is with wooden box, wooden pallet, or strench film packaging. this machine is with flexible wrapping and export standard wooden case. It needs one 20" container for delivery. It will be packed in 4 parts, two separate machine body, winder, and extruder. we will supply one year guarantee, whole life services.
Delivery Detail
On receiving the deposit, the delivery is 15-30 days

images

http://www.youtube.com/watch?v=_Rqkj5BhO-U

     skype bag.maker
     tel 0086-13626771167

Application:

This film blowing machine is used for blowing the various plastic film of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) etc, which are widely used for packing food, fruit, garments, textile, garbage bag and vest bag other civil and industrial products, etc and for vest bag.

Technical Description:

1. Screw and barrel:The screw and barrel are made of 38CRMOALA high quality alloy steel. It is after fine finishing and nitrogen treatment. It has high hardness, strong resistance to corrosion, durable service.

2. Die head: The die head is plated with hard chrome, of screw mandrel type structure it can strengthen the intensity and evenness of plastic film.

3. Rewinder: The rewinder adopts pressure friction rewinding or center rewinding device, which is driven by torque motor. It is even and smooth rewinding and easy roll changing.

4. Lifting device: the lifting device is suitable for various width of film. If the film width is wider, the lifting device can be lift to higher position. If the film width is narrower, the lifting device can be lift to lower position.

5. Electric container: the independent electric container is convenient for operation the machine.

6. Frequency Inverter: the main motor is adjusted by frequency inverter, the take-up motor is also adjusted by frequency inverter.

7. Optional device: air shaft, auto loader, electric meter calculator, corona, screen changer.

Main Technical Parameters:

MODEL
SJ45
SJ50
Raw Material
HDPE LDPE
HDPE LDPE
Film Thickness
0.008-0.08 MM
0.008-0.08 MM
Film Width
150-450 MM
200-600 MM
Max Output
30 KG/H
35 KG/H
Whole Power Required
26KW
28KW
Overall Dimension
5000*2000*4000 MM
5000*2000*4000 MM
Gross Weight
1100KG
1200KG
EXTRUDER


Screw Diameter
Φ45
Φ50
Screw Ratio
28:1
28:1
Driving Motor（Inverter）
11 KW/15HP
11 KW/15HP
Heating Power
12 KW
13KW
Screw Speed
10-110 RPM
10-110 RPM
Cooling Blower
1.1KW/1.5HP
1.5KW/2HP
Temp. Controller
5ZONE
5ZONE
DIE


Die Diameter
Φ50/Φ70
Φ60/Φ70
Heating Power
4.5KW
5KW
TAKE-UP UNIT


Take-up A.C. Motor/ Inverter
1.1KW/1.5HP
1.1KW/1.5HP
Take-up Roller Width
700MM
700MM
Second Take Up Torque Motor
OPTIONAL
OPTIONAL
WINDER


Winding Roller Width
700MM
700MM
Winding Torque Motor
10N/M
10N/M
Free spare part list:
No.
Spare parts name
Quantity
Notes
1
Temperature meter
1set

2
Electric Sensor
          2 pcs

3
Heating ring
3 pcs

4
Tool box
           1set

5
English manual
           1pc

6
Die head
2 different size
One on the machine, and another one as spare part

More Pictures:

sj-45 mini film blowing machine.jpg


SJ45 11.jpg


SJ45 22.jpg

SJ45 66.jpg

SJ45 33.jpg

electric box.jpg



Packaging & Shipping:

Sanyuan Factory will pack the machine with two times film package.

If customer needs wooden case, it needs additional charge.

Shipping sea freight cost paid by buyer.

Sanyuan Factory should help buyer to choose a good shipper agent, to

insure the machine arrive in buyer country safely.
