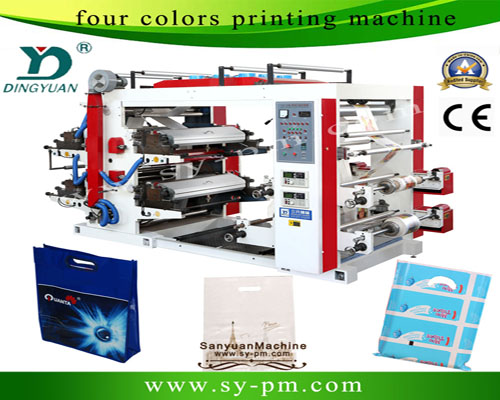

YT-41200 printing machine

Date:2018-05-04

Application:

This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Technical Description:

1.   Easy operation, flexible starting, and accurate color register.

2.   The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.

3.   Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

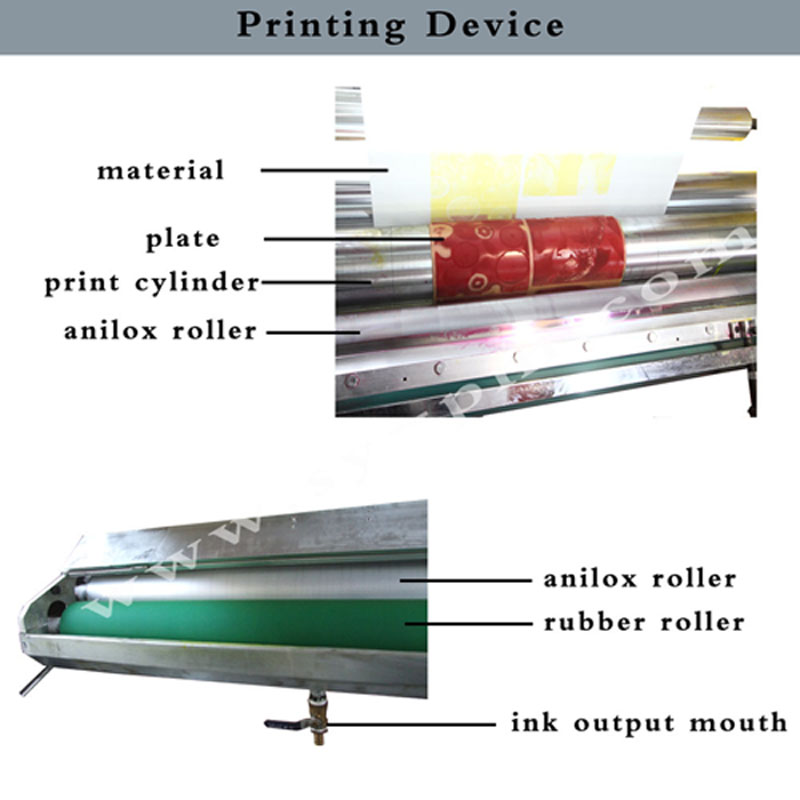

4.   The printing ink is spread by the knurled cylinder with even ink color.

5.   Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6.   360° continuous and adjustable longitudinal register devices.

7.   The imported frequency control of motor speed adapts to different printing speeds.

8.   There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.




Main Technical Parameters:

Machine Model

YT-41200

FOB Ningbo price

18000USD

Printing Color

4

Raw Material Max Width

1200mm

Printing Length

180-960mm

Printing Plate Lifting System

manual

Mechanical Speed

60m/min

Printing Speed

5-50m/min

Anilox Cylinder

metal

Register Precision

±0.5mm

Rewinder/Unwinder Diameter

450mm

Master Motor

3KW

Electrical Heater

21KW

Blower of Heater

550W

Inking Motor

0.55KW

Master Frequency Inverter

3KW

Total Power

25KW

Weight

3800KG

Dimension(L*W*H)mm

4200*2200*2200




The Main List of Detailed Configuration:



Parts Name

Origin

Main Motor (Frequency Conversion Motor)

Siements / Germany

Ink Motor

Hansu/china

Frequency inverter

Delta/ taiwan

Fan

China

Aluminum Guide Roller

China

Anilox Roller

China

Rubber Roller

China

Tension Controller

Weilun / shanghai

Low-voltage Electrical Appliances

Chint/ china

Photoelectric Correction

China

The Switch

Chint

Electrical Control Box

China

Pneumatic Components

China

Main Frame

China

Machine Casting

China

Air Shaft (2pcs)

China

Web Guide

China

Air cylinder lift up and down

China

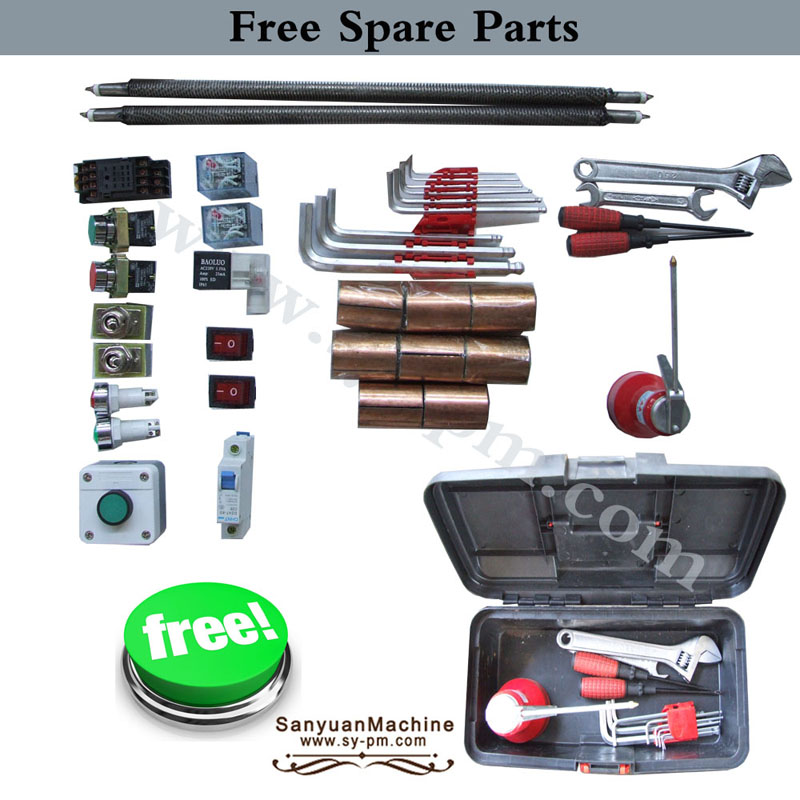

Free Spare Parts:

Spare Parts Name

Quantity

Heater

2pcs

Electric button red color

4pcs

Electric button green color

4pcs

Breaker

1pc

Square shape button

1pc

Copper roll

8pcs

Oil gun

1pc

Allen wrench

8pcs

Big wrench

1pc

Screw driver

2pcs


Advantages:

1.     Sanyuan brand Flexo printing machine can print different of material, such as plastic film (HDPE/LDPE/OPP), paper and non woven material.

2.     We can help customer to make beautiful print design and make plastic plate.

3.     Before machine delivery, we can test the machine with customer offer plastic design plate.

4.     If customer needs special machine color, we can make any color that customer likes, such as: red/blue/orange/grey.

5.     We have special loading team to load machine carefully into the container. It is good and safe for customer.

6.     If buyer advise us the print material and print design, we can help you to choose anilox roller LPI size.



FAQ:

Q: Can four colors flexo printing machine print how many colors?

A: It can print 1 color, or 2 colors, or 3 colors, or 4 colors. It also can print 1+3, or 2+2,or 3+1, or 4+0.

  1+3= 1 color front side + 3 colors back side

2+2= 2 colors front side + 2 colors back side

3+1= 3 colors front side + 1 color back side

4+0= 4 colors front side

Q: what is optional for your machine?

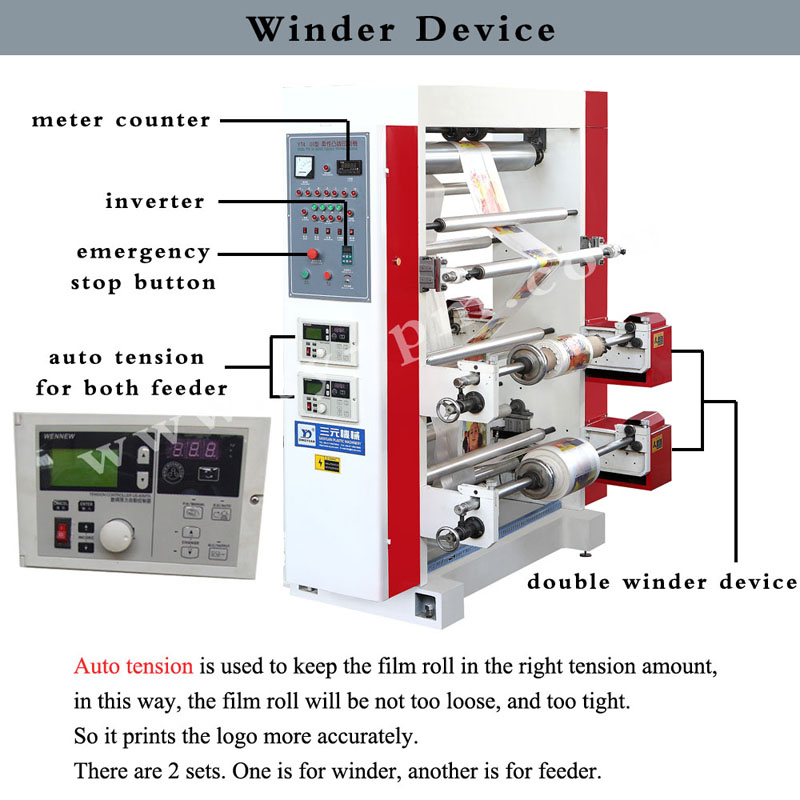

A: Auto tension for feeder and rewinder device.

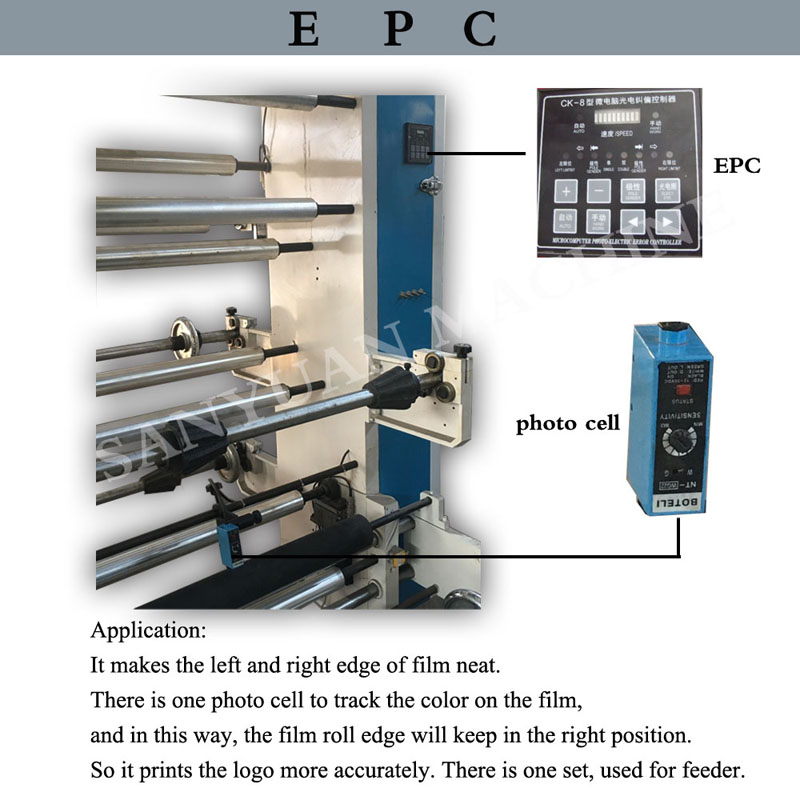

  EPC device for feeding rolls.

  Ceramic anilox roller

  Ink pump

  Doctor blade

  Print cylinder with different size

  Air shaft

Q: Do you have whatsapp and viber to talk online?

A: Yes, our whatsapp and viber is 008613626771167

Q: How many workers in your company?

A: We have 52 workers in our company.
