Usage:

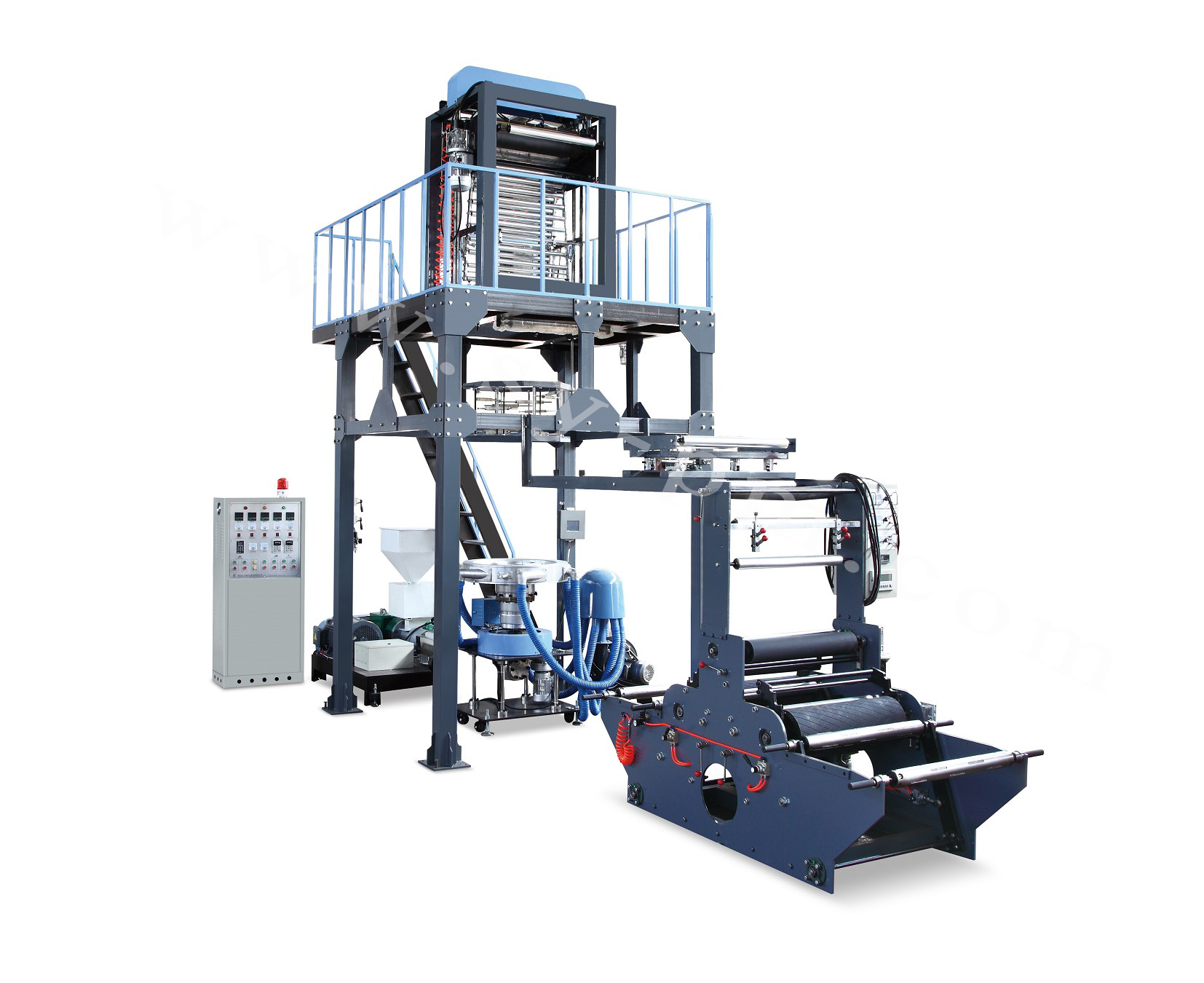

This machine is suitable for blowing the plastic film
as high density polyethylene(HDPE), low density polyethylene(LDPE), which is
widely used for packing foodstuff, garment, textile, daily-use articles and
industrial product etc.
Technical parameter:
|
Model |
SJ-45 |
SJ-55 |
SJ-65 |
|
Suitable Material |
HDPE ,LDPE, LLDPE |
||
|
Film Width (mm) |
300-600mm |
300-800mm |
400-1000mm |
|
Film Thickness(mm) LD |
0.02-0.15mm |
0.02-0.01mm |
0.02-0.13mm |
|
Max Extrusion Output LD |
40-50kg/hr |
30-80kg/hr |
80-120kg/hr |
|
EXTRUDER |
|||
|
Screw Diameter (mm) |
Φ45 |
Φ50 |
Φ55 |
|
Screw L/D Length |
30:01:00 |
||
|
Screw Material |
SACM-645/38 CRMOALA |
||
|
Cylinder Material |
SACM-645/38 CRMOALA |
||
|
Cylinder Cooling |
370W*2 |
370W*2 |
550W*3 |
|
Driving Motor |
11KW |
15KW |
|
|
Temperature Control |
3 |
3 |
4 |
|
Average Power-Consume |
18KW |
26KW |
32KW |
|
Type of Die |
|||
|
Die Size |
Φ70/Φ120 |
Φ100/Φ160 |
Φ160/Φ250 |
|
Temperature Control |
3 |
||
|
Air Ring |
1 |
||
|
Air Blower |
2.2KW |
3KW |
5KW |
|
Center Steady Stick |
2 |
||
|
TAKE-UP UNIT |
|||
|
Roller Width(mm) |
Φ165*700mm |
Φ165*900mm |
Φ165*1300mm |
|
Effective Width |
600mm |
800mm |
1200mm |
|
Height Adjustable Type |
700mm |
||
|
Take-up Speed |
10-80m/min |
10-80m/min |
10-80m/min |
|
Take-up motor |
1.1KW |
1.1KW |
1.5KW |
|
WINDING UNIT |
|||
|
Type |
Surface Friction Type |
||
|
Winding motor |
10N.M |
10N.M |
16N.M |
|
Winding speed |
10-100m/min |
10-100m/min |
10-100m/min |
|
Overall Dimension |
5000*2000*4500mm |
5000*2200*4500mm |
5500*2500*5200mm |
1. SGS, CE, Production Assessment, Gold Supplier certificated
2. With 16 patents for different machines, for eg, Model FQG450*2 can produce 500 pcs/min Plastic T-shirt bags
3. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
4. Perfect after-sale system, setted up more than 5 Agents in DUBAI, ETHIOPIA , RUSSIA, BANGLADESH, etc ; more than 5 experienced technicians work abroad.
5. Yearly Production Capacity -- 200-300 sets
6. Prompt Reply Within 12 Hours
1.Q;Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located ?how can i visit there?
A:Our factory located in Ruian city ,Zhejiang Province ,China.
The nearest airport is Wenzhou airport.
All our clients ,from home or abroad,are warmly welcomed to visited us.
3.Q:Can i get some samples ?how can i get it?
A:Yes, we can send you saom free samples ,but you are responsable for delivery charges of TNT or DHL.
4.Q:How does your factory do the quality control?
A:“QUALITY IS FIRST ", we give importance to the quality controling from the very begining to the end ,Our factory has gained CE&SGS certificte.
5.Q: SJ 45*2 machine can produce both two color PE film and one color PE film ?
A: No, this machine can only produce two-color PE film .
