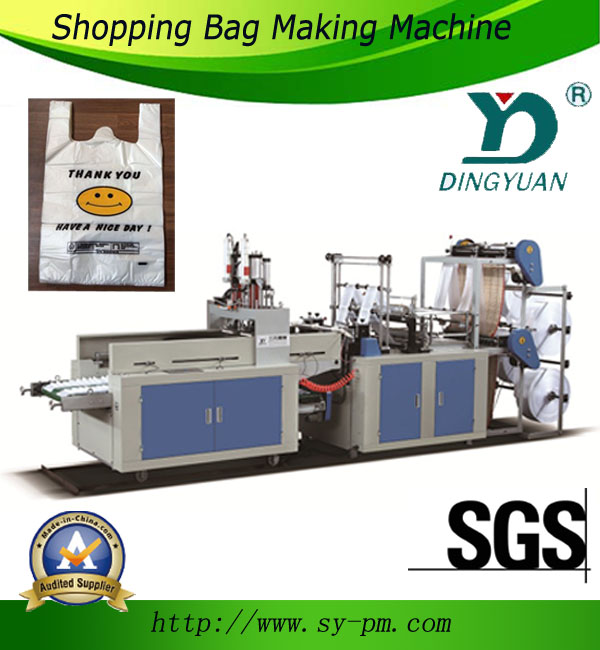

FQCT-HC-600 China Hot Sale High Speed Full Automatic Hot Sealing Plastic Bag Making Machine
Quick Details
|
Packaging Details |
Fully automatic bag making machine / wooden case/ wooden pallet/strench film/ as customer requirement Fully Automatic Plastic Bag Making Machine with Auto Punch with Film wrapped and then exporting standard wooden case, 8 machines can be loaded in a 40 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual |
|
Delivery Detail |
On receiving the deposit, the delivery is 15-30 days |
http://www.youtube.com/watch?v=w6ET2N0pFdg
bag.maker
0086-13626771167
Application:
This machine is suitable for making HDPE and LDPE plastic bags. It adopts the step motor discharge the material in high speed and photocell sensor to track the cutting punch the "M" shape bag in one time. And with such features, such as easy operation and high finished products, so the production efficiency can be improved greatly.
1.Raw Material:HDPE LDPE
2.Bag Type: Vest Bag, T-shirt bag
3.One knife has two design: One head with one sealing line, another head with two sealing line
4.Small width bag , 4 lines (double punch design)
5.Big width bag, 2 lines (single punch design)
Technical Description:
1. Usage: FQCT-HC-600 model bag making machine is suitable for making print bags one line or no-print bags 2 or 4 lines. The factory can produce the machine one line punch or two line punch separately according to customer requirement.
2. Fully Automatic: it can do one-line production of the following steps: heat sealing, cold cutting, punching, sending bags out by conveyer belt, and waste film delivering. All the above steps is done by one machine. In this way, the labor salary is saved.
3. Computer Control System: the sealing and cutting device adopts one computer to control the machine. the machine is two layer, so user can do two or four lines for no-print bag , but print bag one line.
4. Automatic Punch: Air cylinders device will be installed on the machine to do “M”Shape cutting with heavy power.
5. Bags Conveyer Belt: it adopts conveyer belt to send bags out in order.
6. Waste Film Conveyer Belt: the waste film under the machine will be delivered out by another conveyer belt under the machine.
7. Photo Cell: photo cell is used for print bag to do one line production.
8.Its machine has the following features: automatic temperature control, automatic counting system, alarm system.
Main Technical Parameters:
MODEL
FQCT-HC-600
FQCT-HC-700
Bag Width (Max)
230MM
270MM
Bag Length
300-650MM
300-650MM
Converting Thickness
0.015-0.04MM
0.015-0.04MM
Accuracy Length
±1
±1
Speed Cut/Min
50-140pcs/min
50-140pcs/min
Motor
1.1kw/1.5HP
1.1kw/1.5HP
Heater
2kw
2.2kw
Power Required
5.5kw
5.7kw
Dimension (L×W×H)
4800*1180*1700MM
4800*1280*1700MM
Gross Weight
1100kg
1150kg
Free spare part list:
|
No |
Spare parts name |
Brand |
Location |
|
1 |
Main motor |
Dedong |
Shanghai city |
|
2 |
Knife |
Sanyuan |
Ruian city |
|
3 |
Temperature meter |
Yatai |
Shanghai |
|
4 |
Contact |
Delixi |
Wenzhou |
|
5 |
Relay |
Omron |
|
|
6 |
Synchronic belt |
1pcs |
|
|
7 |
Punch knife |
4pcs（2size） |
|
|
8 |
Temperature meter |
1pc |
|
|
9 |
Voltage adjust meter |
1pc |
|
|
10 |
Close switch |
1pc |
1. Plastic bag making machine is specialized for making t shirt bag and shopping bag
2. Plastic bag making machine adopts frequency inverter adjust main motor speed
3. Plastic bag making machine adopts photo cell to track the color
4. Plastic bag making machine adopts computer program control
More Pictures:
Packaging & Shipping:
Sanyuan Factory will pack the machine with two times film package.
If customer needs wooden case, it needs additional charge.
Shipping sea freight cost paid by buyer.
Sanyuan Factory should help buyer to choose a good shipper agent, to
insure the machine arrive in buyer country safely.
