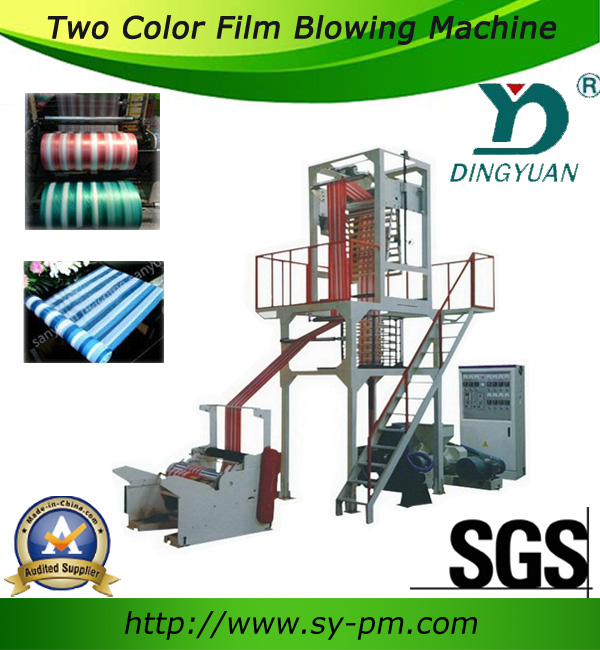

Application:

It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polyethylene (HDPE) color striped plastic film, etc, Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products.

Technical Description:

The cylinders and the screw stems of model SJ-45*2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag ,The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Main Technical Parameters:

MODEL	SJ-45*2 COLOR
Raw Material	HDPE, LDPE
Film Thickness	0.01-0.08mm
Folding Width Of Product	200-600mm
Max Output	40 KG/H
Whole Power Required	40KW
Overall Dimension	5000×2500×4000MM
Gross Weight	1400KG
EXTRUDER
Screw Diameter (MM)	Φ45MM
Screw Ratio	28:1
Driving Motor (Inverter)	15KW/20HP
Heating Power	20KW
Screw Speed	10-110 RPM
Cooling Blower	1.5KW/2HP
Temp. Controller	10ZONE
DIE
Die Diameter (MM)	Φ70MM
Heating Power	7KW
TAKE-UP UNIT
Take-up A.C. Motor/ Inverter	1.1KW/1.5HP
Take-up Roller Width	700MM
WINDER
Winding Roller Width	700MM
Winding Torque Motor	10N/M

Free spare part list:

No.	Spare parts name	Quantity	Notes
1	Temperature meter	1set
2	Electric Sensor	2 pcs
3	Heating ring	3 pcs
4	Tool box	1set
5	English manual	1pc
6	Die head	2 different size	One on the machine, and another one as spare part
